NSN 5955-00-944-5167
Part Details | ELECTRICAL-ELECTRONIC COMPONENTS OVEN
5955-00-944-5167 An electrically heated compartment designed to accommodate and maintain at an essentially constant temperature, one or more components, such as, CRYSTAL UNIT(S), QUARTZ; tuned circuits; integrated circuit devices; and semiconductors. It prevents frequency drift and changes in teperature.
Alternate Parts: C0M246, C0M-246, 9000136, 900-0136, 25170271, 2517027-1, 25170271REVJ, 2517027-1REVJ, C01031, C0M246, C0M-246, 25170271, 2517027-1, 5955-00-944-5167, 00-944-5167, 5955009445167, 009445167
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 11, 1966 | 00-944-5167 | 41012 ( OVEN, ELECTRICAL-ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

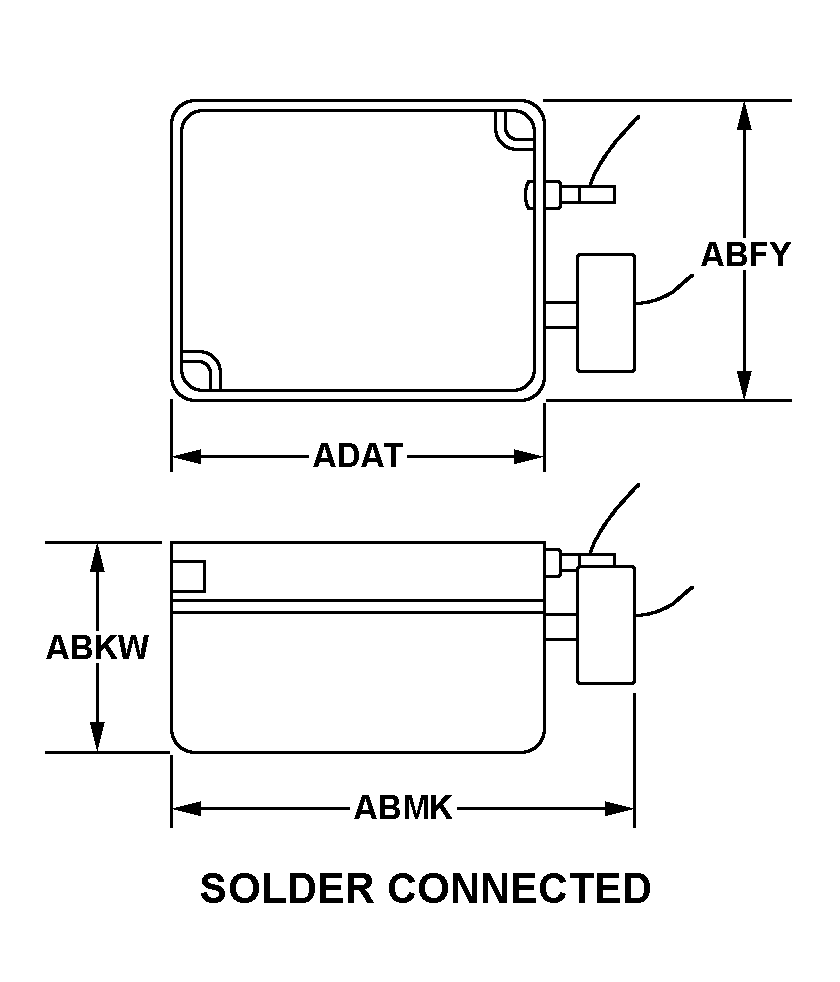

SOLDER CONNECTED
Cross Reference | NSN 5955-00-944-5167
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C0M-246 | 28726 | BULOVA TECHNOLOGIES L.L.C.DBA ENVIRONMENTAL SYSTEMS & SVCS |
| 900-0136 | 75378 | CTS INC |
| 2517027-1 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 2517027-1REVJ | 53711 | NAVAL SEA SYSTEMS COMMAND |
| C01031 | 12020 | OAK CRYSTAL INC |
| C0M-246 | 03040 | POWER CONTROL DEVICES, INC.DBA AMERICAN TIME PRODUCTS |
| 2517027-1 | 99687 | RAYTHEON CO EQUIPMENT DEVELOPMENTLAB |
Technical Data | NSN 5955-00-944-5167
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOLDER CONNECTED |
| OVERALL DEPTH | 2.515 INCHES MAXIMUM |
| OVERALL HEIGHT | 3.440 INCHES NOMINAL |
| OVERALL WIDTH | 5.195 INCHES NOMINAL |
| BODY WIDTH | 4.075 INCHES MAXIMUM |
| COMPONENT TYPE AND QUANTITY ACCOMMODATED | 1 CRYSTAL |
| INCLOSURE TYPE | INCLOSED |
| MAINTAINED OVEN CAVITY TEMP RATING | 75.0 DEG CELSIUS |
| MAINTAINED TEMP TOLERANCE RATING | -3.0 TO +3.0 DEG CELSIUS |
| HEATER ELEMENT OPERATING VOLTAGE RATING IN VOLTS AND TYPE | 45.0 DC MINIMUM AND 55.0 DC MAXIMUM |
| OPERATING POWER DISSIPATING RATING IN WATTS | 20.0 |
| MAXIMUM WARM UP TIME IN MINUTES | 20.0 |
| TEMP CONTROL DEVICE TYPE | THERMOSTATIC SWITCH |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.250 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.620 INCHES NOMINAL AND 4.625 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 7 PIN |
