NSN 5955-00-953-1962
Part Details | ELECTRICAL-ELECTRONIC COMPONENTS OVEN
5955-00-953-1962 An electrically heated compartment designed to accommodate and maintain at an essentially constant temperature, one or more components, such as, CRYSTAL UNIT(S), QUARTZ; tuned circuits; integrated circuit devices; and semiconductors. It prevents frequency drift and changes in teperature.
Alternate Parts: 2098529G1, SA510, SA5-10, SA510, SA5-10, 5955-00-953-1962, 00-953-1962, 5955009531962, 009531962
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-953-1962 | 41012 ( OVEN, ELECTRICAL-ELECTRONIC COMPONENTS ) |

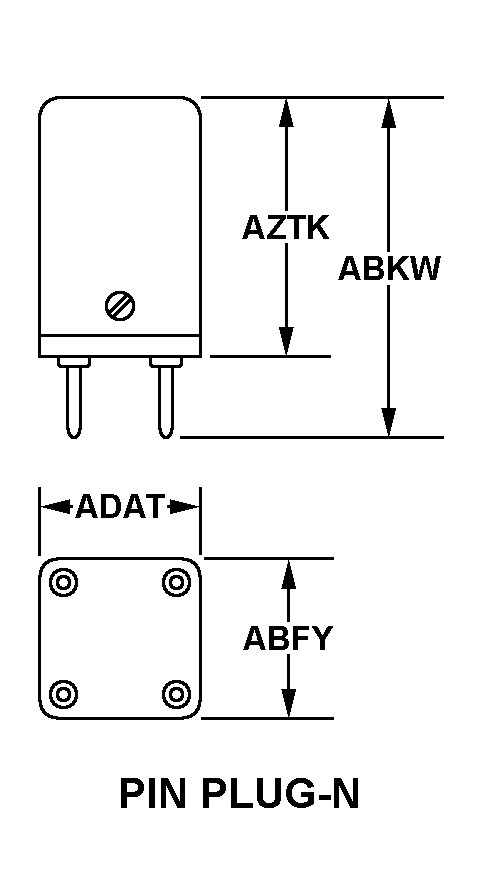

REFERENCE DRAWINGS & PICTURES
PIN PLUG-IN
Cross Reference | NSN 5955-00-953-1962
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2098529G1 | 28527 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, INTEGRATED |
| SA5-10 | 12020 | OAK CRYSTAL INC |
| SA5-10 | 00136 | VECTRON INTERNATIONAL, INC. |
Technical Data | NSN 5955-00-953-1962
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PIN PLUG-IN |
| OVERALL DEPTH | 2.250 INCHES NOMINAL |
| OVERALL HEIGHT | 3.188 INCHES NOMINAL |
| BODY WIDTH | 2.500 INCHES NOMINAL |
| BODY OVERALL HEIGHT | 2.750 INCHES NOMINAL |
| COMPONENT TYPE AND QUANTITY ACCOMMODATED | 5 CRYSTAL |
| CRYSTAL HOLDER DESIGNATOR | HC-6/U |
| INCLOSURE TYPE | INCLOSED |
| MAINTAINED OVEN CAVITY TEMP RATING | 75.0 DEG CELSIUS |
| MAINTAINED TEMP TOLERANCE RATING | -2.0 TO +2.0 DEG CELSIUS |
| HEATER ELEMENT OPERATING VOLTAGE RATING IN VOLTS AND TYPE | 120.0 AC NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.000 INCHES NOMINAL AND 2.250 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 14 PIN |
