NSN 5955-00-989-7301
Part Details | ELECTRICAL-ELECTRONIC COMPONENTS OVEN
5955-00-989-7301 An electrically heated compartment designed to accommodate and maintain at an essentially constant temperature, one or more components, such as, CRYSTAL UNIT(S), QUARTZ; tuned circuits; integrated circuit devices; and semiconductors. It prevents frequency drift and changes in teperature.
Alternate Parts: ER0151P0214D, ER0-15-1-P0214D, 00606296015652, P0214, P0214, P0-214, 5955-00-989-7301, 00-989-7301, 5955009897301, 009897301
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-989-7301 | 41012 ( OVEN, ELECTRICAL-ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

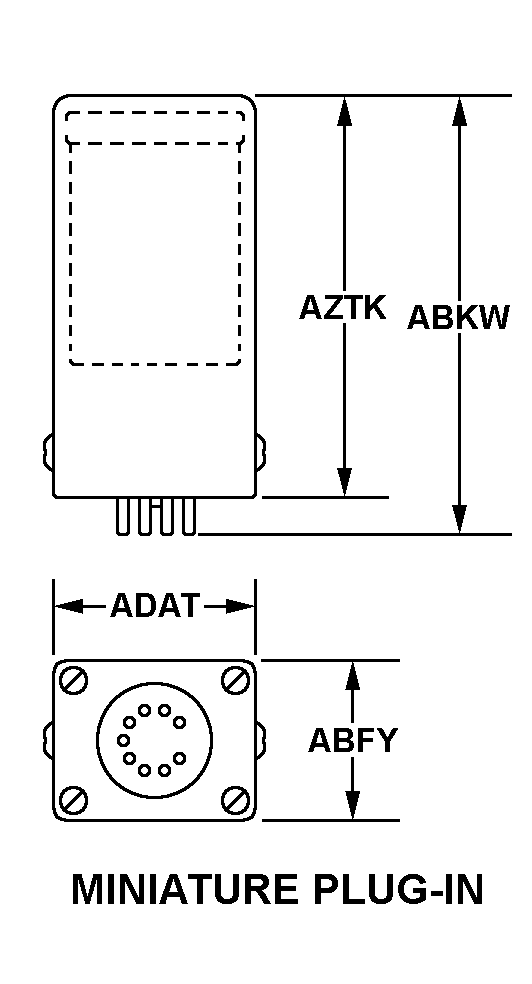

MINIATURE PLUG-IN
Cross Reference | NSN 5955-00-989-7301
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ER0-15-1-P0214D | 13571 | ELECTRONIC RESEARCH COSUB OF Q-TECH CORP |
| 00606296015652 | 82679 | THE TECHNICAL MATERIAL CORPORATIONDBA T M C |
| P0214 | 82679 | THE TECHNICAL MATERIAL CORPORATIONDBA T M C |
| P0-214 | 82679 | THE TECHNICAL MATERIAL CORPORATIONDBA T M C |
Technical Data | NSN 5955-00-989-7301
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | MINIATURE PLUG-IN |
| OVERALL DEPTH | 0.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.719 INCHES NOMINAL |
| BODY WIDTH | 1.000 INCHES NOMINAL |
| BODY OVERALL HEIGHT | 1.438 INCHES NOMINAL |
| COMPONENT TYPE AND QUANTITY ACCOMMODATED | 2 CRYSTAL |
| FURNISHED CRYSTAL UNIT SPECIFIED FREQUENCY | 250.000 HERTZ AND 705.000 HERTZ |
| CRYSTAL HOLDER DESIGNATOR | HC-6/U |
| INCLOSURE TYPE | INCLOSED |
| MAINTAINED OVEN CAVITY TEMP RATING | 75.0 DEG CELSIUS |
| MAINTAINED TEMP TOLERANCE RATING | -2.0 TO +2.0 DEG CELSIUS |
| HEATER ELEMENT OPERATING VOLTAGE RATING IN VOLTS AND TYPE | 6.3 AC NOMINAL AND 6.3 DC NOMINAL |
| TERMINAL TYPE AND QUANTITY | 7 PLUG |
