NSN 5955-01-021-7780
Part Details | QUARTZ CRYSTAL UNIT
5955-01-021-7780 An item which consists of a quartz crystal resonator(s), suitably mounted in a HOLDER, QUARTZ CRYSTAL.
Alternate Parts: K3786C, K378-6C, C158736C, C15873-6C, 9450426C, 945042-6C, 992616C, 99-261-6C, 5955-01-021-7780, 01-021-7780, 5955010217780, 010217780
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 20, 1976 | 01-021-7780 | 00196 ( CRYSTAL UNIT, QUARTZ ) |
REFERENCE DRAWINGS & PICTURES

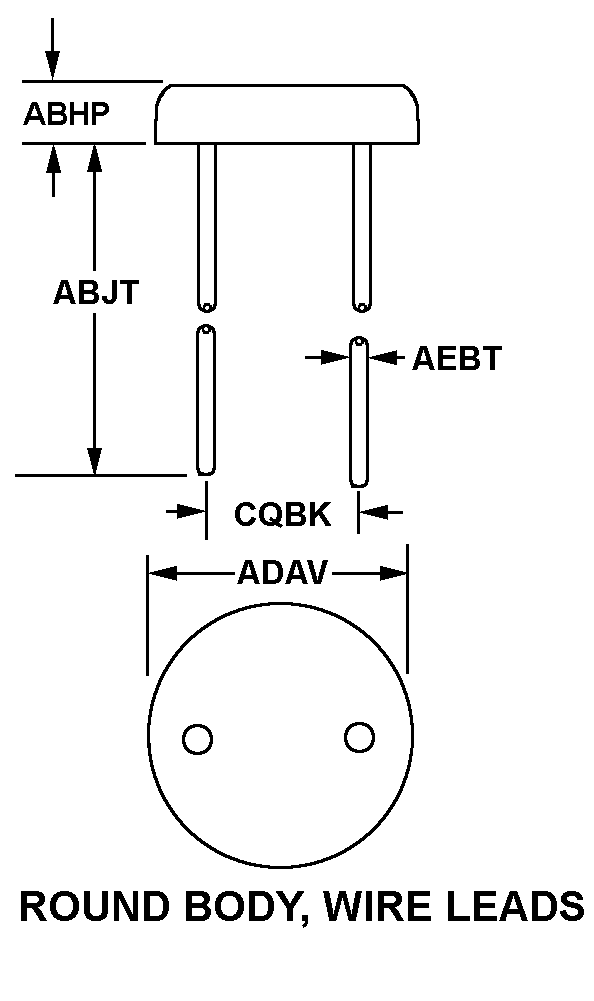

ROUND BODY, WIRE LEADS
Cross Reference | NSN 5955-01-021-7780
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| K378-6C | 71034 | BLILEY TECHNOLOGIES INCORPORATED |
| C15873-6C | 82567 | CTS REEVES FREQUENCY PRODUCTS |
| 945042-6C | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
| 99-261-6C | 00136 | VECTRON INTERNATIONAL, INC. |
Technical Data | NSN 5955-01-021-7780
| Characteristic | Specifications |
|---|---|
| MODE OF OSCILLATION | FIFTH OVERTONE |
| CIRCUIT RESONANCE | SERIES RESONANCE |
| SHUNT CAPACITANCE IN PICOFARADS | 4.8 MAXIMUM |
| SPECIFIED FREQUENCY | 105.965729 MEGAHERTZ |
| FREQUENCY TOLERANCE FOR OPERATING TEMP IN PERCENT | M0.002/P0.002 |
| OPERATING TEMP RANGE | +0.0 TO +40.0 DEG CELSIUS |
| EQUIVALENT RESISTANCE VALUE IN OHMS | 55.0 MAXIMUM |
| DRIVE LEVEL RATING | 0.3 MILLIWATTS MINIMUM AND 0.5 MILLIWATTS MAXIMUM |
| STYLE DESIGNATOR | ROUND BODY, WIRE LEADS |
| OVERALL LENGTH | 0.220 INCHES MINIMUM AND 0.265 INCHES MAXIMUM |
| TERMINAL LENGTH | 1.500 INCHES MINIMUM |
| OVERALL DIAMETER | 0.350 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| TERMINAL DIAMETER | 0.016 INCHES MINIMUM AND 0.019 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.190 INCHES MINIMUM AND 0.210 INCHES MAXIMUM |
| HOLDER COVER MATERIAL | METAL |
