NSN 5955-01-023-5708
Part Details | ELECTRICAL-ELECTRONIC COMPONENTS OVEN
5955-01-023-5708 An electrically heated compartment designed to accommodate and maintain at an essentially constant temperature, one or more components, such as, CRYSTAL UNIT(S), QUARTZ; tuned circuits; integrated circuit devices; and semiconductors. It prevents frequency drift and changes in teperature.
Alternate Parts: 26050054, 2605005-4, 3630071002, 363-0071-002, 248914, 9455601D, 945560-1D, 5375871, 537587-1, 3415003, 4ST12, 4ST1-2, 4ST12, 4ST1-2, 4ST12, 4ST1-2, 5955-01-023-5708, 01-023-5708, 5955010235708, 010235708
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 21, 1976 | 01-023-5708 | 41012 ( OVEN, ELECTRICAL-ELECTRONIC COMPONENTS ) |

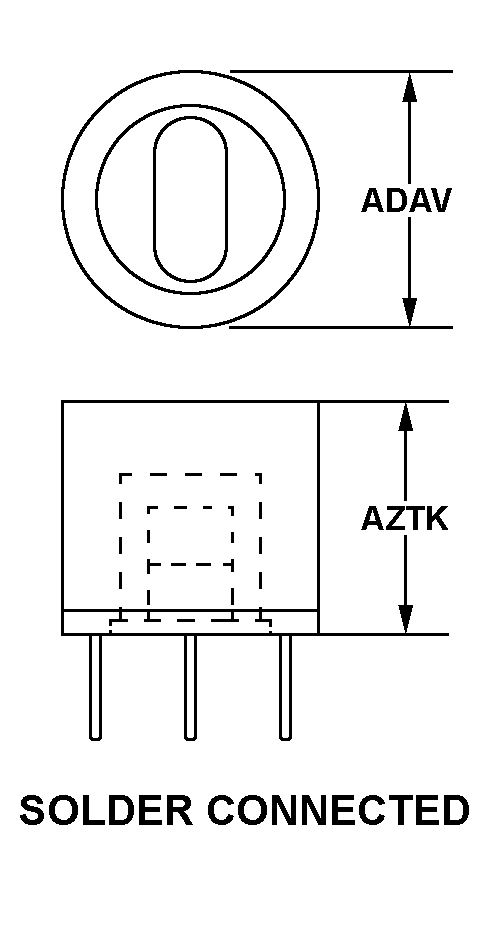

REFERENCE DRAWINGS & PICTURES
SOLDER CONNECTED
Cross Reference | NSN 5955-01-023-5708
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2605005-4 | 06424 | ALLIANT TECHSYSTEMS OPERATIONS LLCDIV DEFENSE ELECTRONIC SYSTEMS |
| 363-0071-002 | 94756 | BOEING COMPANY, THEDBA BOEING |
| 248914 | 89536 | FLUKE CORPORATION |
| 945560-1D | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
| 537587-1 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
| 3415003 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
| 4ST1-2 | 82647 | SENSATA TECHNOLOGIES, INCDIV SENSATA ATTLEBORO |
| 4ST1-2 | 73803 | TEXAS INSTRUMENTS INCMETALLURGICAL MATERIALS DIV |
| 4ST1-2 | 01295 | TEXAS INSTRUMENTS INCORPORATEDDBA TEXAS INSTRUMENTS |
Technical Data | NSN 5955-01-023-5708
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOLDER CONNECTED |
| OVERALL DIAMETER | 0.718 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| BODY OVERALL HEIGHT | 0.406 INCHES MINIMUM AND 0.437 INCHES MAXIMUM |
| COMPONENT TYPE AND QUANTITY ACCOMMODATED | 1 CRYSTAL |
| INCLOSURE TYPE | INCLOSED |
| MAINTAINED OVEN CAVITY TEMP RATING | 80.0 DEG CELSIUS |
| MAINTAINED TEMP TOLERANCE RATING | -5.0 TO +5.0 DEG CELSIUS |
| HEATER ELEMENT OPERATING VOLTAGE RATING IN VOLTS AND TYPE | 20.0 DC MINIMUM AND 28.0 DC MAXIMUM |
| OPERATING POWER DISSIPATING RATING IN WATTS | 3.0 |
| MAXIMUM WARM UP TIME IN MINUTES | 3.0 |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 TERMINAL |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| WIRE LEAD LENGTH | 1.000 INCHES MINIMUM |
