NSN 5960-00-170-4440
Part Details | ELECTRON TUBE RETAINER
5960-00-170-4440 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Alternate Parts: SCD19920PT378, SC-D-19920PT3-7-8, SCD19920, SC-D-19920, 5960-00-170-4440, 00-170-4440, 5960001704440, 001704440
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-170-4440 | 16182 ( RETAINER, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

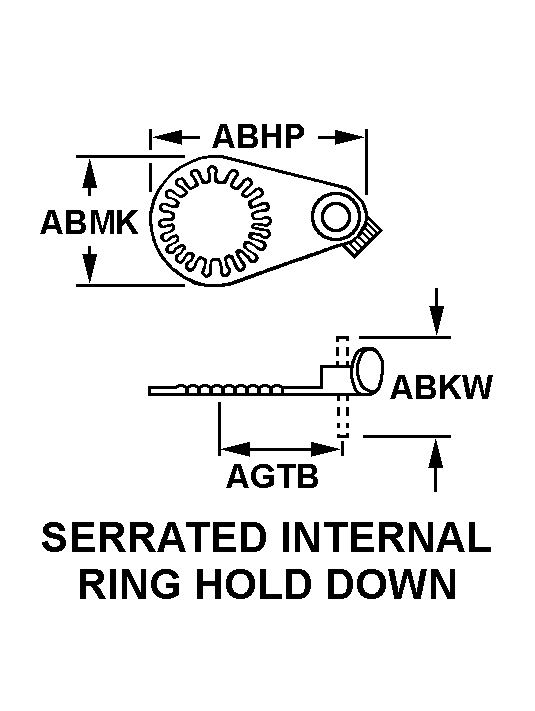

SERRATED INTERNAL RING HOLD DOWN
Cross Reference | NSN 5960-00-170-4440
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SC-D-19920PT3-7-8 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
| SC-D-19920 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5960-00-170-4440
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SERRATED INTERNAL RING HOLD DOWN |
| OVERALL LENGTH | 2.562 INCHES NOMINAL |
| OVERALL WIDTH | 2.125 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO CENTERLINE OF MOUNTING FACILITY | 1.250 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | COMPRESSION RING |
| EIA ELECTRON TUBE ENVELOPE ACCOMMODATED | T6 1-2 |
