NSN 5960-00-170-4447
Part Details | ELECTRON TUBE RETAINER
5960-00-170-4447 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Alternate Parts: 128204, 128204, 8169993, 8599, 20B18556, 8170080, 5960-00-170-4447, 00-170-4447, 5960001704447, 001704447
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-170-4447 | 16182 ( RETAINER, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

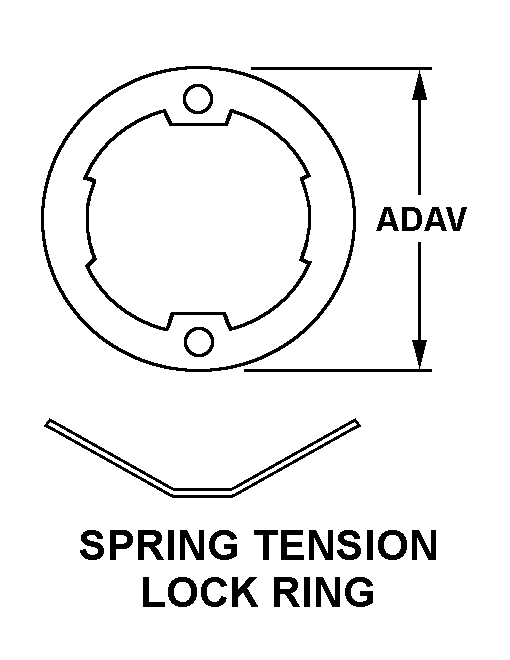

SPRING TENSION LOCK RING
Cross Reference | NSN 5960-00-170-4447
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 128204 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 128204 | 70408 | AT AND T CORP |
| 8169993 | 12628 | ATOMIC ENERGY COMMISSIONNEW YORK OPNS OFFICE |
| 8599 | 71785 | CINCH CONNECTORS, INC. |
| 20B18556 | 71785 | CINCH CONNECTORS, INC. |
| 8170080 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5960-00-170-4447
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 1 FED SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | SPRING TENSION LOCK RING |
| OVERALL DIAMETER | 1.813 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | SPRING CLIP |
| ELECTRON TUBE BASE ACCOMMODATED DIAMETER | +1.235 TO +1.275 INCHES |
