NSN 5960-00-178-0961
Part Details | ELECTRON TUBE RETAINER
5960-00-178-0961 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Alternate Parts: ML74667984, ML7466798-4, 5960-00-178-0961, 00-178-0961, 5960001780961, 001780961
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-178-0961 | 16182 ( RETAINER, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

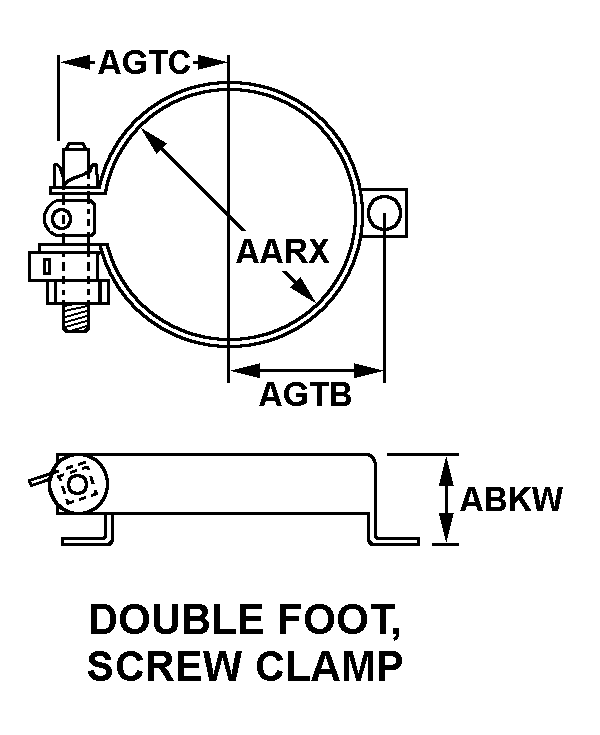

DOUBLE FOOT, SCREW CLAMP
Cross Reference | NSN 5960-00-178-0961
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ML7466798-4 | 24446 | GENERAL ELECTRIC COMPANY |
Technical Data | NSN 5960-00-178-0961
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| STYLE DESIGNATOR | DOUBLE FOOT, SCREW CLAMP |
| INSIDE DIAMETER | 1.337 INCHES MINIMUM AND 1.377 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.562 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO CENTERLINE OF MOUNTING FACILITY | 0.958 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO MOUNTING FACILITY CENTER AT LOOP TIGHTENING DEVICE | 0.922 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | CLAMP |
| ELECTRON TUBE BASE ACCOMMODATED DIAMETER | +1.337 TO +1.377 INCHES |
