NSN 5960-00-215-5884
Part Details | ELECTRON TUBE RETAINER
5960-00-215-5884 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Alternate Parts: 3022C2, 302-2C2, 8175844, 5960-00-215-5884, 00-215-5884, 5960002155884, 002155884
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-215-5884 | 16182 ( RETAINER, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

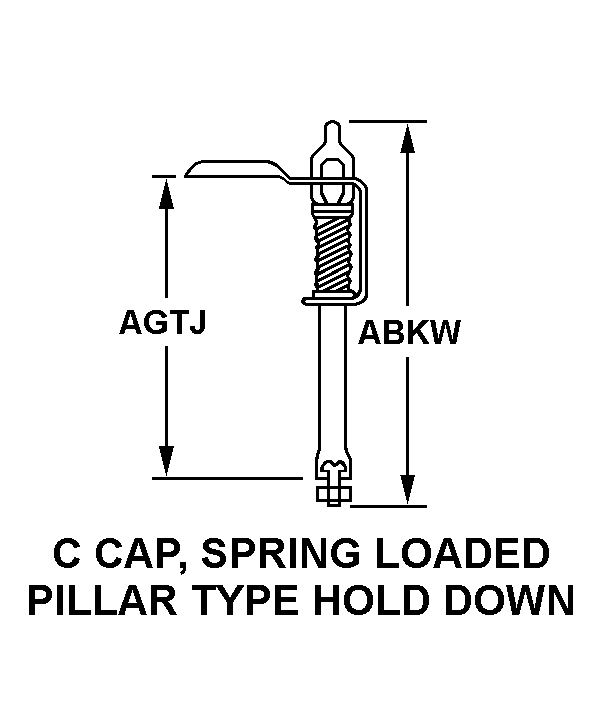

C CAP, SPRING LOADED, PILLAR TYPE HOLD DOWN
Cross Reference | NSN 5960-00-215-5884
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 302-2C2 | 07387 | BIRTCHER CORP |
| 8175844 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5960-00-215-5884
| Characteristic | Specifications |
|---|---|
| MATERIAL | ANY ACCEPTABLE |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| STYLE DESIGNATOR | C CAP, SPRING LOADED, PILLAR TYPE HOLD DOWN |
| OVERALL HEIGHT | 2.078 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SURFACE TO RETAINING SURFACE | 1.249 INCHES NOMINAL |
| EIA ELECTRON TUBE ENVELOPE ACCOMMODATED | T6 1-2 |
