NSN 5960-00-223-5963
Part Details | ELECTRON TUBE RETAINER
5960-00-223-5963 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Alternate Parts: B74081011, B7408101-1, B74081011, B7408101-1, 1HATW25P0ST, 125, 1-25, TTE125, TTE1-25, 1JA42702, 1JA4270-2, 1JA42702, 1JA4270-2, 5960-00-223-5963, 00-223-5963, 5960002235963, 002235963
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-223-5963 | 16182 ( RETAINER, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

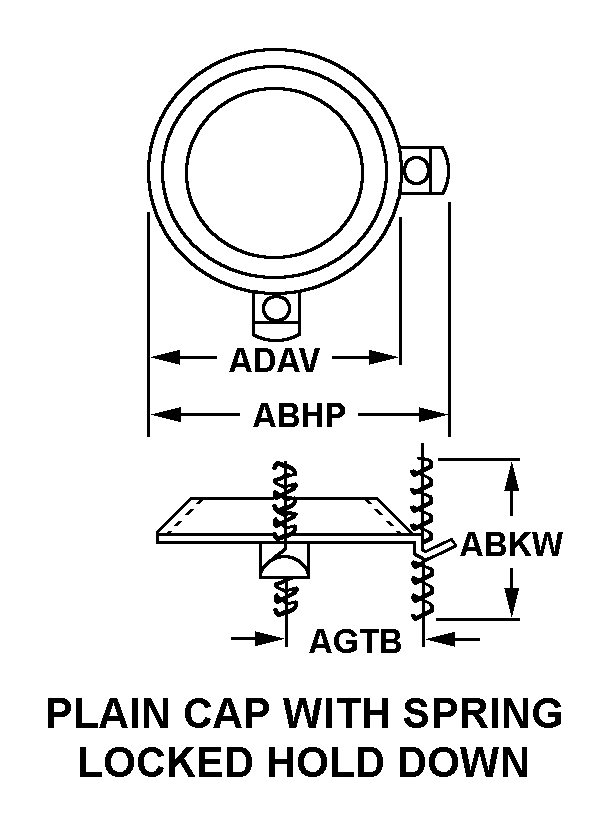

PLAIN CAP WITH SPRING LOCKED HOLD DOWN
Cross Reference | NSN 5960-00-223-5963
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B7408101-1 | 24446 | GENERAL ELECTRIC COMPANY |
| B7408101-1 | 78792 | GENERAL ELECTRIC COTRANSMITTER DIVISION |
| 1HATW25P0ST | 92755 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDBA LAND & SELF PROTECTION SYSTEM |
| 1-25 | 92755 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDBA LAND & SELF PROTECTION SYSTEM |
| TTE1-25 | 92755 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDBA LAND & SELF PROTECTION SYSTEM |
| 1JA4270-2 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
| 1JA4270-2 | 79500 | WESTINGHOUSE ELECTRIC CORP |
Technical Data | NSN 5960-00-223-5963
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| STYLE DESIGNATOR | PLAIN CAP WITH SPRING LOCKED HOLD DOWN |
| OVERALL LENGTH | 1.562 INCHES NOMINAL |
| OVERALL HEIGHT | 3.625 INCHES NOMINAL |
| OVERALL DIAMETER | 1.062 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO CENTERLINE OF MOUNTING FACILITY | 0.688 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | COMPRESSION RING |
| EIA ELECTRON TUBE ENVELOPE ACCOMMODATED | T5 1/2 |
