NSN 5960-00-243-1086
Part Details | ELECTRON TUBE RETAINER
5960-00-243-1086 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Alternate Parts: 8250381, 82-5038-1, 8250381, 82-5038-1, 8250381, 82-5038-1, 5960-00-243-1086, 00-243-1086, 5960002431086, 002431086
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-243-1086 | 16182 ( RETAINER, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

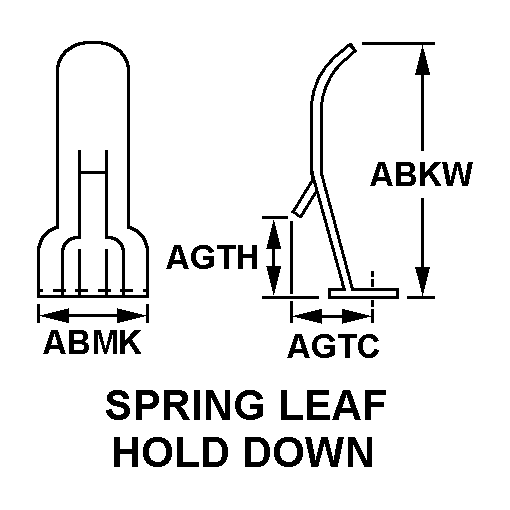

SPRING LEAF HOLD DOWN
Cross Reference | NSN 5960-00-243-1086
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 82-5038-1 | 54X10 | RAYTHEON COMPANYDBA RAYTHEON |
| 82-5038-1 | 49956 | RAYTHEON COMPANYDBA RAYTHEON |
| 82-5038-1 | 3B150 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5960-00-243-1086
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| STYLE DESIGNATOR | SPRING LEAF HOLD DOWN |
| OVERALL HEIGHT | 1.125 INCHES NOMINAL |
| OVERALL WIDTH | 0.562 INCHES NOMINAL |
| DISTANCE FROM RETAINER CENTER TO END OF EXTENDED CLIP | 0.188 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SURFACE TO LOCKING DEVICE | 0.766 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | SPRING CLIP |
| ELECTRON TUBE BASE ACCOMMODATED DIAMETER | +1.337 TO +1.377 INCHES |
