NSN 5960-00-545-5957
Part Details | MULTIPLE ELECTRON TUBE SHIELD
5960-00-545-5957 An item specifically designed to be placed over two or more ELECTRON TUBE for purpose of shielding against electrical and/or mechanical interferences. See also SHIELD, ELECTRON TUBE.
Alternate Parts: L2808162, L280816-2, 5960-00-545-5957, 00-545-5957, 5960005455957, 005455957
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-545-5957 | 20363 ( SHIELD, ELECTRON TUBE, MULTIPLE ) |
REFERENCE DRAWINGS & PICTURES

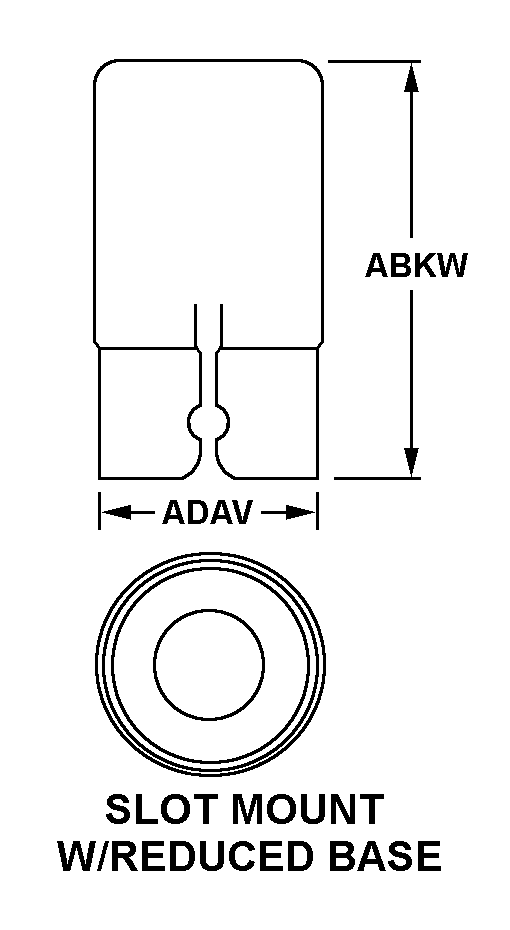

SLOT MOUNT W/REDUCED BASE
Cross Reference | NSN 5960-00-545-5957
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L280816-2 | 06845 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5960-00-545-5957
| Characteristic | Specifications |
|---|---|
| MATERIAL | ANY ACCEPTABLE |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| STYLE DESIGNATOR | SLOT MOUNT W/REDUCED BASE |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | SPRING CLIP |
| FEATURES PROVIDED | COMPRESSION SPRING |
