NSN 5960-00-816-8692
Part Details | ELECTRON TUBE SHIELD
5960-00-816-8692 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Alternate Parts: 9342123, 93421-23, 576R309H01, 576R309H01, 5960-00-816-8692, 00-816-8692, 5960008168692, 008168692
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-816-8692 | 10195 ( SHIELD, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

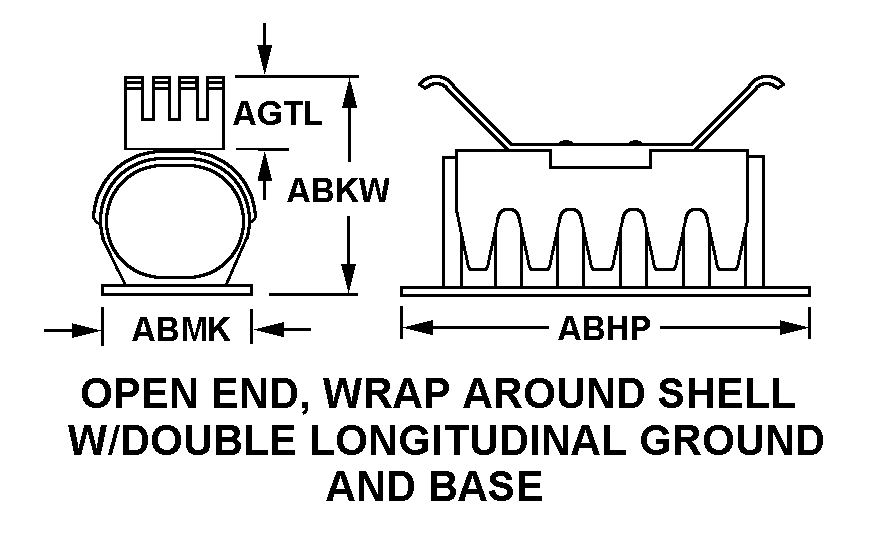

OPEN END, WRAP AROUND SHELL W/DOUBLE LONGITUDINAL GROUND AND BASE
Cross Reference | NSN 5960-00-816-8692
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 93421-23 | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIAINC |
| 576R309H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
| 576R309H01 | 79500 | WESTINGHOUSE ELECTRIC CORP |
Technical Data | NSN 5960-00-816-8692
| Characteristic | Specifications |
|---|---|
| MATERIAL | G000 ANY ACCEPTABLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-561 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-M-151 FED SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | OPEN END, WRAP AROUND SHELL W/DOUBLE LONGITUDINAL GROUND AND BASE |
| OVERALL LENGTH | 1.312 INCHES NOMINAL |
| OVERALL HEIGHT | 0.672 INCHES NOMINAL |
| OVERALL WIDTH | 0.490 INCHES NOMINAL |
| SPRING CLIP HEIGHT | 0.218 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | FRICTION FASTENER |
| EIA ELECTRON TUBE ENVELOPE ACCOMMODATED | T3 3-2 |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND LOCATION | EXTERNAL SURFACES SILVER |
