NSN 5961-00-085-4507
Part Details | SEMICONDUCTOR DEVICE RECTIFIER
5961-00-085-4507 Two or more interconnected SEMICONDUCTOR DEVICE (1), DIODE arranged in stack(s) for use in power supplies to change alternating current to direct current. For items containing material such as selenium or copper oxide, see RECTIFIER, METALLIC.
Alternate Parts: 47411, 4741-1, 5961-00-085-4507, 00-085-4507, 5961000854507, 000854507
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-085-4507 | 00300 ( RECTIFIER, SEMICONDUCTOR DEVICE ) |
REFERENCE DRAWINGS & PICTURES

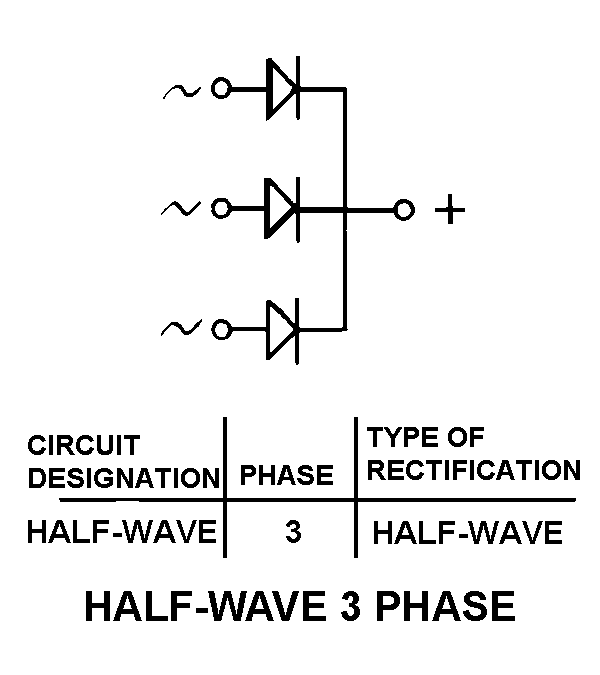

HALF-WAVE 3 PHASE
Cross Reference | NSN 5961-00-085-4507
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4741-1 | 09344 | ROCKWELL COLLINS, INC.DBA RC DISPLAYS SYSTEMS |
Technical Data | NSN 5961-00-085-4507
| Characteristic | Specifications |
|---|---|
| MATERIAL | SILICON |
| TERMINAL TYPE AND QUANTITY | 4 WIRE LEAD |
| CIRCUIT CONNECTION STYLE DESIGNATOR | HALF-WAVE 3 PHASE |
| OPERATING TEMP RANGE | -55.0 TO +125.0 DEG CELSIUS |
| OVERALL LENGTH | 0.700 INCHES NOMINAL |
| OVERALL WIDTH | 0.200 INCHES NOMINAL |
| OVERALL HEIGHT | 0.570 INCHES NOMINAL |
