NSN 5965-00-646-4678
Part Details | CARBON MICROPHONE
5965-00-646-4678 A microphone which depends for its operation upon the variation in resistance of carbon granules.
Alternate Parts: M52AU, M-52A/U, M52AU, M-52A/U, MILM11193, MIL-M-11193, M52AU, M-52A/U, 177D1, SCDL76334, SC-DL76334, SCDL76334, SC-DL-76334, 5965-00-646-4678, 00-646-4678, 5965006464678, 006464678
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-646-4678 | 00359 ( MICROPHONE, CARBON ) |
REFERENCE DRAWINGS & PICTURES

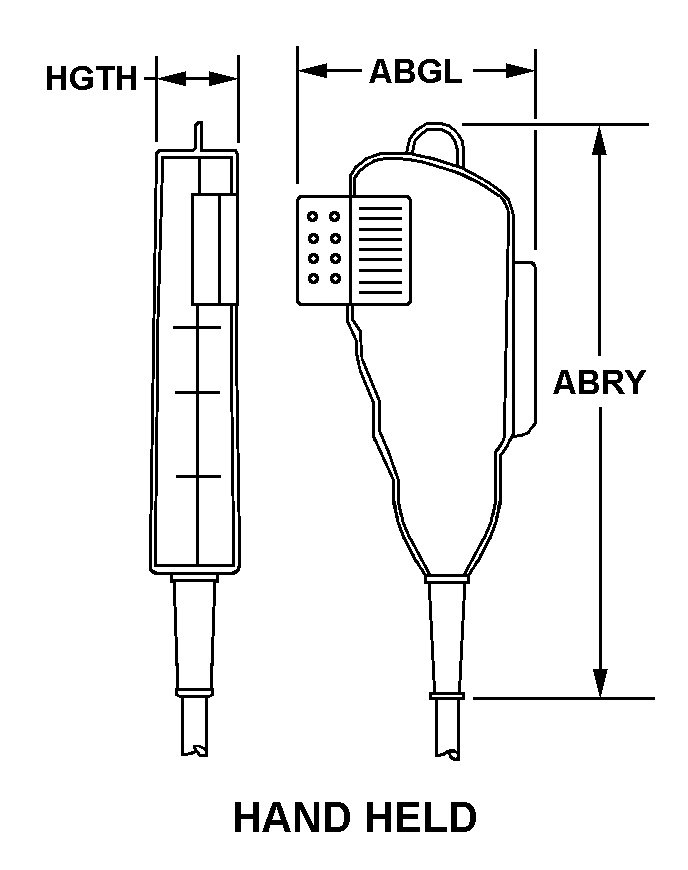

HAND HELD
Cross Reference | NSN 5965-00-646-4678
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M-52A/U | 97101 | AUDIO-SEARS CORP. |
| M-52A/U | 80058 | JOINT ELECTRONICS TYPE DESIGNATIONSYSTEM |
| MIL-M-11193 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| M-52A/U | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 177D1 | 88243 | SEAVIEW ELECTRIC CO |
| SC-DL76334 | 16575 | SONETRONICS INCDBA SONETRONICS |
| SC-DL-76334 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5965-00-646-4678
| Characteristic | Specifications |
|---|---|
| DC RESISTANCE RATING IN OHMS | 100.0 NOMINAL |
| FREQUENCY RESPONSE RANGE IN HERTZ | P300.0/P4000.0 |
| OUTPUT SENSITIVITY RATING IN DECIBELS | 115.0 |
| OUTPUT SENSITIVITY RATING REFERENCE | 0.0002 DYNES PER SQ CENTIMETER |
| POLARITY CONNECTION | NOT REQUIRED |
| SOUND PICKUP DIRECTIONAL TYPE | UNIDIRECTIONAL |
| NOISE CANCELING FEATURE | INCLUDED |
| SUPPORT STAND | NOT INCLUDED |
| SHOCK MOUNT | NOT PROVIDED |
| MOUNTING METHOD | CLIP |
| ELECTRICAL CONNECTION TYPE | INTEGRAL CABLE |
| ACCESSORY COMPONENTS | CONNECTOR |
| CONNECTOR IDENTIFICATION | PJ-068 |
| EXTENDED CABLE LENGTH | 6.1 FEET NOMINAL |
| CABLE CONDUCTOR QUANTITY | 3 |
| CABLE SHIELDED CONDUCTOR QUANTITY | 1 |
| SWITCH TYPE | PUSH |
| BODY STYLE | HAND HELD |
| WIDTH | 3.125 INCHES NOMINAL |
| LENGTH | 5.594 INCHES NOMINAL |
| HEIGHT | 1.000 INCHES NOMINAL |
| TEST DATA DOCUMENT | 81349-MIL-M-11193 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
