NSN 5965-00-757-3403
Part Details | MICROPHONE ELEMENT
5965-00-757-3403 A complete fabrication of the essential internal operating parts of a microphone.
Alternate Parts: RE51F127PC115, RE51F127PC1-15, 216030004694, 216-030-004-694, 10497, 5965-00-757-3403, 00-757-3403, 5965007573403, 007573403
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-757-3403 | 00293 ( MICROPHONE ELEMENT ) |
REFERENCE DRAWINGS & PICTURES

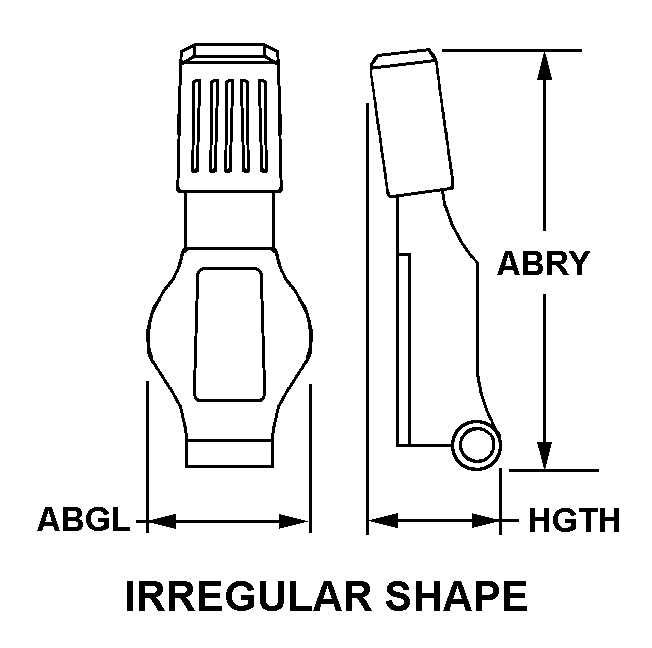

IRREGULAR SHAPE
Cross Reference | NSN 5965-00-757-3403
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RE51F127PC1-15 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 216-030-004-694 | 82872 | ROANWELL CORPORATIONDBA ROANWELL |
| 10497 | 82872 | ROANWELL CORPORATIONDBA ROANWELL |
Technical Data | NSN 5965-00-757-3403
| Characteristic | Specifications |
|---|---|
| ELEMENT TYPE | DYNAMIC |
| FREQUENCY RESPONSE RANGE IN HERTZ | P300.0/P4500.0 |
| POLARITY CONNECTION | REQUIRED |
| SOUND PICKUP DIRECTIONAL TYPE | NOT RATED |
| NOISE CANCELING FEATURE | INCLUDED |
| TERMINAL TYPE | CONNECTOR, PLUG |
| BODY STYLE | IRREGULAR SHAPE |
| WIDTH | 1.000 INCHES NOMINAL |
| LENGTH | 2.375 INCHES NOMINAL |
| HEIGHT | 0.688 INCHES NOMINAL |
