Part Details | MICROPHONE ELEMENT
5965-00-843-9957 A complete fabrication of the essential internal operating parts of a microphone.
Alternate Parts: 20952, 10239A, M101, B82577, B-82577, 82577, 82368, SP2120, SP-2120, 62145019, 62145-019, M101AIC, M-101/AIC, 5719HA, 5719-HA, 5043839, 5043-839, M101AIC, M101/AIC, MILM27291, MILPRF265424, MIL-PRF-26542/4, MILM265424, MIL-M-26542/4, M101A1C, M-101/A1C, M101AIC, M-101/AIC, 5043839, 5043-839, M101A1C, 10601, M101AIC, M-101/AIC, 5965-00-843-9957, 00-843-9957, 5965008439957, 008439957
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-843-9957 | 00293 ( MICROPHONE ELEMENT ) |
REFERENCE DRAWINGS & PICTURES

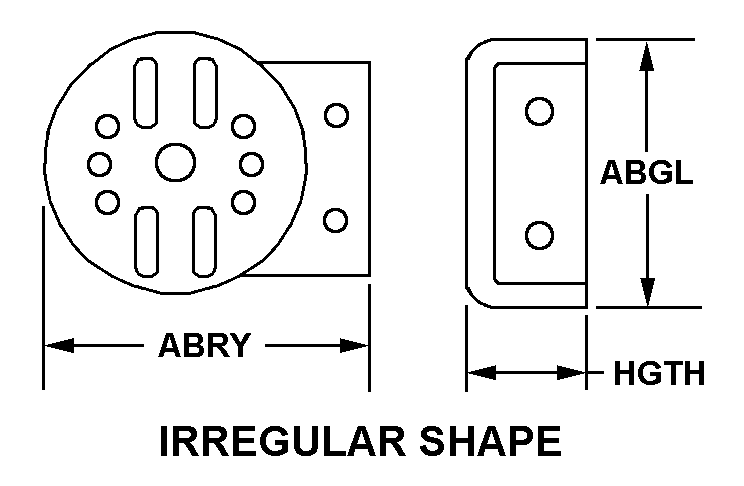

IRREGULAR SHAPE
Cross Reference | NSN 5965-00-843-9957
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20952 | 18068 | ASTROCOM ELECTRONICS, INC. |
| 10239A | 18068 | ASTROCOM ELECTRONICS, INC. |
| M101 | 81134 | BOSCH SECURITY SYSTEMS, INCDBA USE CAGE CODE 25734 FOR |
| B-82577 | 81134 | BOSCH SECURITY SYSTEMS, INCDBA USE CAGE CODE 25734 FOR |
| 82577 | 81134 | BOSCH SECURITY SYSTEMS, INCDBA USE CAGE CODE 25734 FOR |
| 82368 | 81134 | BOSCH SECURITY SYSTEMS, INCDBA USE CAGE CODE 25734 FOR |
| SP-2120 | 71483 | DAVID CLARK COMPANY INCORPORATED |
| 62145-019 | 12763 | DYNALEC CORPORATION |
| M-101/AIC | 80058 | JOINT ELECTRONICS TYPE DESIGNATIONSYSTEM |
| 5719-HA | 22861 | JOYCE TELECTRONICS CORP |
| 5043-839 | 22861 | JOYCE TELECTRONICS CORP |
| M101/AIC | 81579 | MASON ELECTRIC COMPANYDIV ESTERLINE MASON |
| MILM27291 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-PRF-26542/4 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-M-26542/4 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| M-101/A1C | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| M-101/AIC | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 5043-839 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
| M101A1C | 82872 | ROANWELL CORPORATIONDBA ROANWELL |
| 10601 | 82872 | ROANWELL CORPORATIONDBA ROANWELL |
| M-101/AIC | 16575 | SONETRONICS INCDBA SONETRONICS |
Technical Data | NSN 5965-00-843-9957
| Characteristic | Specifications |
|---|---|
| ELEMENT TYPE | DYNAMIC |
| FREQUENCY RESPONSE RANGE IN HERTZ | P200.0/P6000.0 |
| IMPEDANCE RATING | 4.0 OHMS MINIMUM AND 6.0 OHMS MAXIMUM |
| OUTPUT SENSITIVITY RATING IN DECIBELS | BM74.0$$B74.0 |
| OUTPUT SENSITIVITY RATING REFERENCE | 0.0002 DYNES PER SQ CENTIMETER |
| POLARITY CONNECTION | NOT REQUIRED |
| SOUND PICKUP DIRECTIONAL TYPE | UNIDIRECTIONAL |
| NOISE CANCELING FEATURE | INCLUDED |
| SHOCK MOUNT | NOT PROVIDED |
| TERMINAL TYPE | PIN JACK |
| BODY STYLE | IRREGULAR SHAPE |
| WIDTH | 1.047 INCHES NOMINAL |
| LENGTH | 1.163 INCHES MAXIMUM |
| HEIGHT | 0.500 INCHES MAXIMUM |
| SPECIAL FEATURES | THIS IS A NOISE CANCELLING DYNAMIC TYPE ELEMENT WITH A 4 TO 6 OHM IMPEDANCE AND A 200 TO 6000 HZ FREQUENCY RESPONSE; USED WITH SEVERAL HEADSET-MICROPHONES AND HELMETS |
| TEST DATA DOCUMENT | 81349-MIL-M-26542 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| UNPACKAGED UNIT WEIGHT | 16.0 GRAMS |
| FSC APPLICATION DATA | HEADSETS,HANDSETS,MICROPHONES AND SPEAKERS |
