NSN 5965-00-857-6622

Part Details | DYNAMIC MICROPHONE

5965-00-857-6622 A microphone which depends for its operation upon the generation of an electromotive force by the motion of a moving coil within a magnetic field.

Alternate Parts: M102AIC, M-102/AIC, MILM27469, MILM265425, MIL-M-26542/5, M102AIC, M-102/AIC, 5965-00-857-6622, 00-857-6622, 5965008576622, 008576622

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196200-857-662200362 ( MICROPHONE, DYNAMIC )

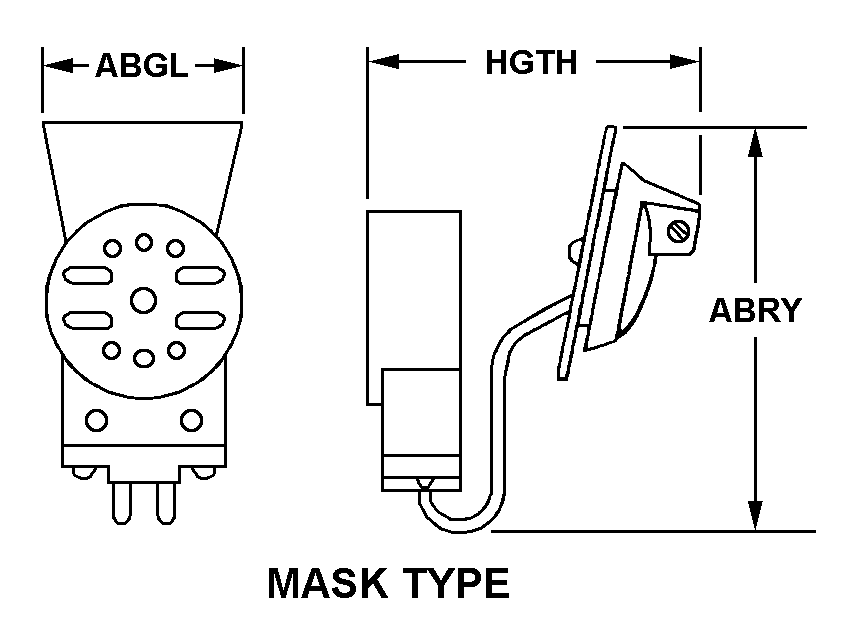

REFERENCE DRAWINGS & PICTURES

MASK TYPE

Cross Reference | NSN 5965-00-857-6622
Part Number Cage Code Manufacturer
M-102/AIC80058JOINT ELECTRONICS TYPE DESIGNATIONSYSTEM
MILM2746981349MILITARY SPECIFICATIONSPROMULGATED BY MILITARY
MIL-M-26542/581349MILITARY SPECIFICATIONSPROMULGATED BY MILITARY
M-102/AIC81349MILITARY SPECIFICATIONSPROMULGATED BY MILITARY
Technical Data | NSN 5965-00-857-6622
Characteristic Specifications
FREQUENCY RESPONSE RANGE IN HERTZP200.0/P6000.0
IMPEDANCE RATING5.0 OHMS NOMINAL
POLARITY CONNECTION NOT REQUIRED
SOUND PICKUP DIRECTIONAL TYPE UNIDIRECTIONAL
NOISE CANCELING FEATURE INCLUDED
SUPPORT STAND NOT INCLUDED
SHOCK MOUNT NOT PROVIDED
ELECTRICAL CONNECTION TYPE INTEGRAL CABLE
ACCESSORY COMPONENTS CONNECTOR
EXTENDED CABLE LENGTH1.6 FEET NOMINAL
CABLE CONDUCTOR QUANTITY2
CABLE SHIELDED CONDUCTOR QUANTITY2
BODY STYLE MASK TYPE
WIDTH1.000 INCHES NOMINAL
LENGTH1.500 INCHES NOMINAL
HEIGHT1.500 INCHES NOMINAL
TEST DATA DOCUMENT81349-MIL-M-26542 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
