NSN 5965-01-036-8039
Part Details | DYNAMIC MICROPHONE
5965-01-036-8039 A microphone which depends for its operation upon the generation of an electromotive force by the motion of a moving coil within a magnetic field.
Alternate Parts: S35A, 35A, 9211077, BK6B, 570S, 5965-01-036-8039, 01-036-8039, 5965010368039, 010368039
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 07, 1977 | 01-036-8039 | 00362 ( MICROPHONE, DYNAMIC ) |

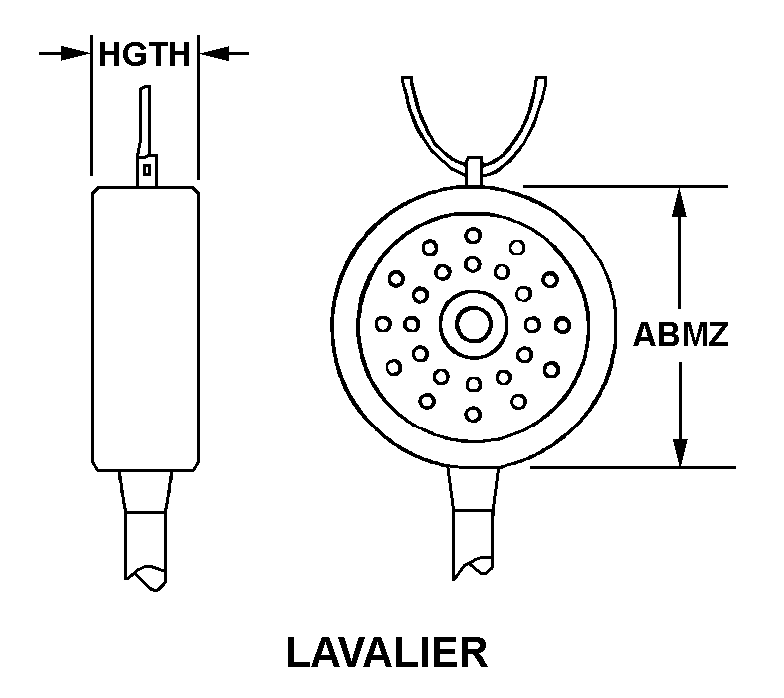

REFERENCE DRAWINGS & PICTURES
LAVALIER
Cross Reference | NSN 5965-01-036-8039
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S35A | 05613 | BOSCH SECURITY SYSTEMS, INC.DBA HY-GAIN/TURNER DIVISION |
| 35A | 25734 | BOSCH SECURITY SYSTEMS, INC.DIV COMMUNICATIONS DIVISION |
| 9211077 | 43689 | HUNTINGTON INGALLS INCORPORATEDDIV NEWPORT NEWS |
| BK6B | 95303 | RCA CORP RECEIVING TUBE DIV |
| 570S | 54715 | SHURE BROS INC |
Technical Data | NSN 5965-01-036-8039
| Characteristic | Specifications |
|---|---|
| FREQUENCY RESPONSE RANGE IN HERTZ | P50.0/P12000.0 |
| IMPEDANCE RATING | 25.0 OHMS MINIMUM AND 200.0 OHMS MAXIMUM |
| POLARITY CONNECTION | NOT REQUIRED |
| SOUND PICKUP DIRECTIONAL TYPE | OMNIDIRECTIONAL |
| NOISE CANCELING FEATURE | NOT INCLUDED |
| SUPPORT STAND | NOT INCLUDED |
| SHOCK MOUNT | NOT PROVIDED |
| ELECTRICAL CONNECTION TYPE | INTEGRAL CABLE |
| ACCESSORY COMPONENTS | CABLE |
| EXTENDED CABLE LENGTH | 30.0 FEET NOMINAL |
| CABLE CONDUCTOR QUANTITY | 2 |
| CABLE SHIELDED CONDUCTOR QUANTITY | 2 |
| SWITCH TYPE | PUSH |
| BODY STYLE | LAVALIER |
| FSC APPLICATION DATA | HEADSETS,HANDSETS,MICROPHONES AND SPEAKERS |
