NSN 5970-00-093-6072
Part Details | ANGLE BRACKET INSULATOR
5970-00-093-6072 An insulator formed into a dihedral angle (generally a right angle) designed to position, align or support an item(s) in relation to another.
Alternate Parts: C5AZ13867A, C5AZ13867A, 5970-00-093-6072, 00-093-6072, 5970000936072, 000936072
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 27, 1972 | 00-093-6072 | 19191 ( INSULATOR, ANGLE BRACKET ) |
REFERENCE DRAWINGS & PICTURES

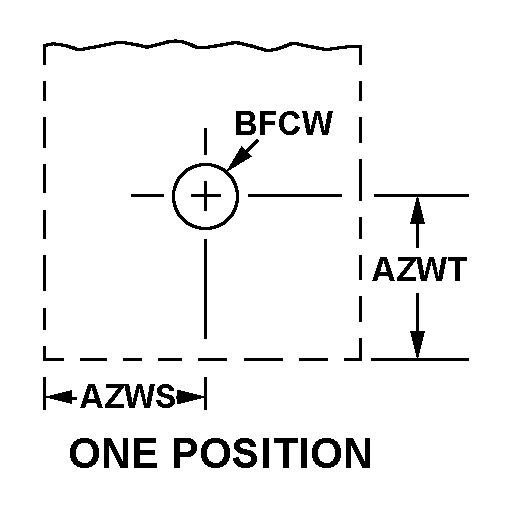

ONE POSITION
Cross Reference | NSN 5970-00-093-6072
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C5AZ13867A | 23040 | FORD MOTOR COFORD PARTS AND SERVICE DIV |
| C5AZ13867A | 57526 | FORD MOTOR COMPANY |
Technical Data | NSN 5970-00-093-6072
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| ANGLE | 30.0 DEGREES |
| HOLE ARRANGEMENT STYLE | ONE POSITION |
| HOLE DIAMETER/SIZE | 0.125 INCHES NOMINAL |
| REINFORCEMENT FEATURE | PROVIDED |
