NSN 5970-00-094-6763
Part Details | BOWL INSULATOR
5970-00-094-6763 An insulator used for wire entering or feedthru purposes. May include mounting and/or conducting hardware. Includes replacement bowls for feedthru insulators. Characterized by one or more bowl or bell shaped insulator surfaces.
Alternate Parts: 7754187001, 775-4187-001, 5970-00-094-6763, 00-094-6763, 5970000946763, 000946763
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 08, 1972 | 00-094-6763 | 18300 ( INSULATOR, BOWL ) |

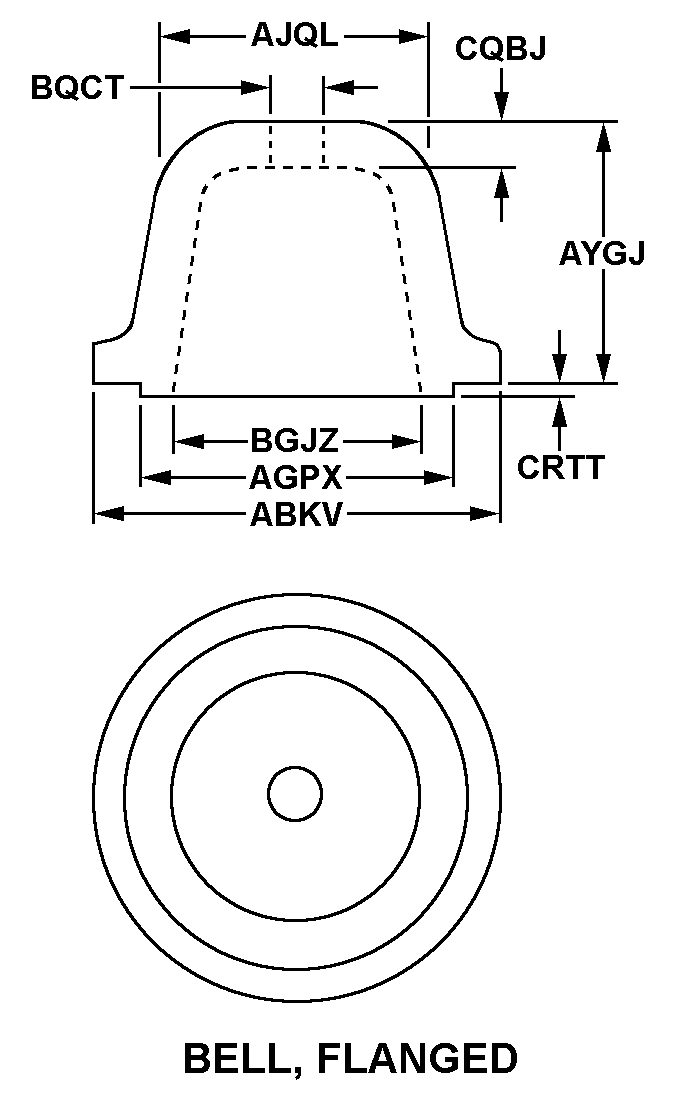

REFERENCE DRAWINGS & PICTURES
BELL, FLANGED
Cross Reference | NSN 5970-00-094-6763
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 775-4187-001 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5970-00-094-6763
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BELL, FLANGED |
| OUTSIDE DIAMETER | 1.840 INCHES NOMINAL |
| SHOULDER OUTSIDE DIAMETER | 0.184 INCHES NOMINAL |
| TOP DIAMETER | 1.421 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 2.281 INCHES NOMINAL |
| BASE INSIDE DIAMETER | 1.500 INCHES NOMINAL |
| TOP HOLE DIAMETER | 0.448 INCHES NOMINAL |
| TOP THICKNESS | 0.188 INCHES NOMINAL |
| SHOULDER DEPTH | 0.156 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL INSULATION, ELECTRICAL, MIL-I-10, GRADE L443 |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED HOLE |
