NSN 5970-00-115-0940
Part Details | STRAIN INSULATOR
5970-00-115-0940 An insulator specifically designed to transmit to the tower, or other support, the entire pull of a conductor or guy wire.
Alternate Parts: 4820163, 482-0163, 5970-00-115-0940, 00-115-0940, 5970001150940, 001150940
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 30, 1968 | 00-115-0940 | 00226 ( INSULATOR, STRAIN ) |

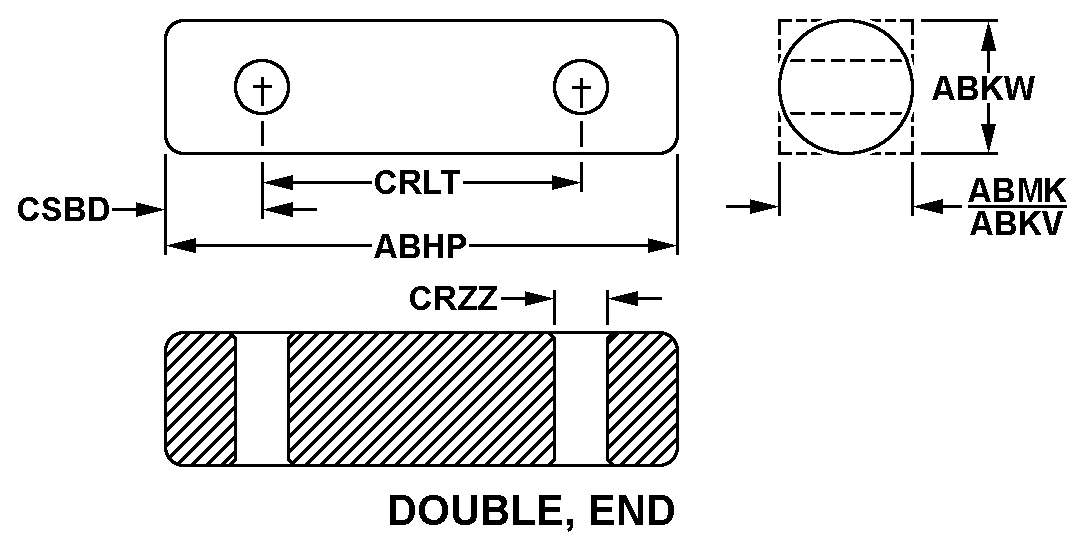

REFERENCE DRAWINGS & PICTURES
DOUBLE, END
Cross Reference | NSN 5970-00-115-0940
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 482-0163 | 08935 | GRANGER ASSOCIATESMS 1101 |
Technical Data | NSN 5970-00-115-0940
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE, END |
| OVERALL LENGTH | 5.800 INCHES NOMINAL |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| FIRST CORNER RADIUS | 0.125 INCHES NOMINAL |
| CONDUCTOR SEPARATION DISTANCE | 4.000 INCHES NOMINAL |
| WIRE HOLE DIAMETER | 0.360 INCHES NOMINAL |
| FIRST DISTANCE FROM CONDUCTOR HOLE TO INSULATOR END | 0.900 INCHES NOMINAL |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | WHITE |
