NSN 5970-00-144-1586
Part Details | STRAIN INSULATOR
5970-00-144-1586 An insulator specifically designed to transmit to the tower, or other support, the entire pull of a conductor or guy wire.
Alternate Parts: 9607, 9607, 11831, 118-3-1, 136107, 136-107, 5970-00-144-1586, 00-144-1586, 5970001441586, 001441586
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-144-1586 | 00226 ( INSULATOR, STRAIN ) |

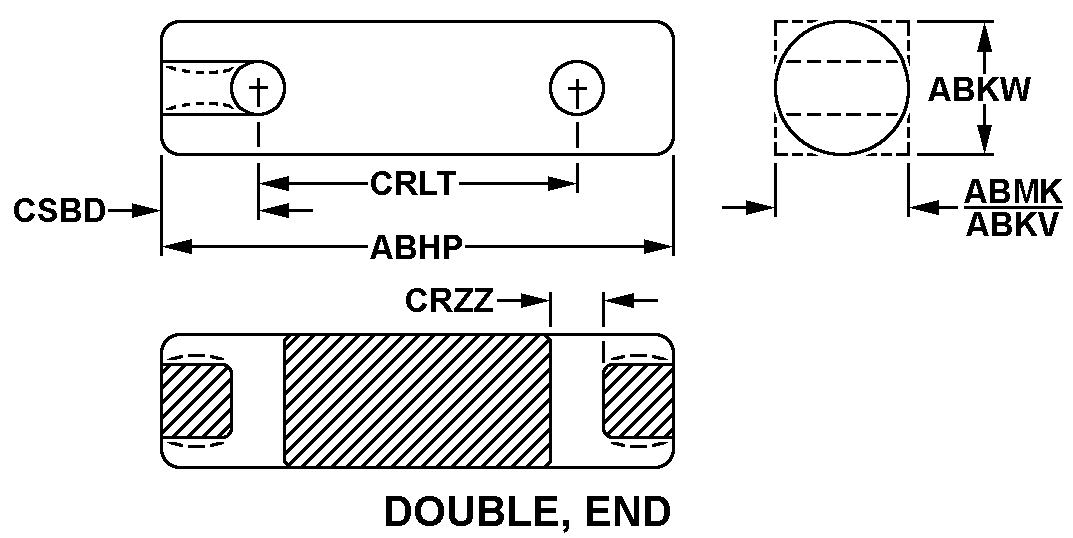

REFERENCE DRAWINGS & PICTURES
DOUBLE, END
Cross Reference | NSN 5970-00-144-1586
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9607 | 83330 | DIALIGHT CORPORATION |
| 9607 | 91967 | HALSIT HOLDINGS, LLCDBA ABBATRON |
| 118-3-1 | 92755 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDBA LAND & SELF PROTECTION SYSTEM |
| 136-107 | 74970 | VIKING TECHNOLOGIES, LTD. |
Technical Data | NSN 5970-00-144-1586
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE, END |
| OVERALL LENGTH | 7.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| CONDUCTOR SEPARATION DISTANCE | 5.500 INCHES NOMINAL |
| WIRE HOLE DIAMETER | 0.250 INCHES NOMINAL |
| FIRST DISTANCE FROM CONDUCTOR HOLE TO INSULATOR END | 0.750 INCHES NOMINAL |
| IDENTIFICATION CODE COLOR | WHITE |
