NSN 5970-00-177-1611
Part Details | PIN INSULATOR
5970-00-177-1611 An insulator which is grooved for guiding purposes and which is specifically designed to be mounted on a crossarm pin or bracket pin.
Alternate Parts: C9061302, C906-1302, L72R, 382223010, 38222-3010, 5970-00-177-1611, 00-177-1611, 5970001771611, 001771611
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 30, 1970 | 00-177-1611 | 18289 ( INSULATOR, PIN ) |

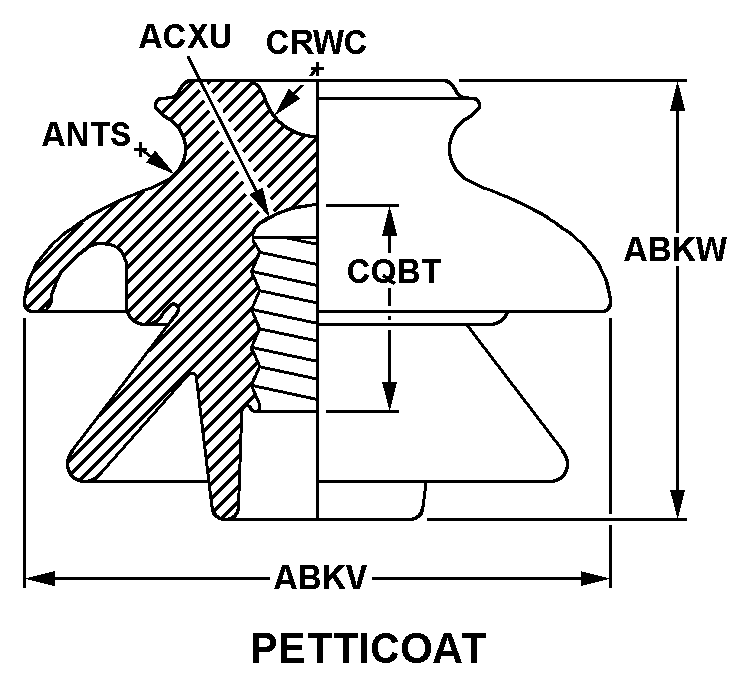

REFERENCE DRAWINGS & PICTURES
PETTICOAT
Cross Reference | NSN 5970-00-177-1611
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C906-1302 | 86559 | CHANCE A B CSUB OF EMERSON ELECTRIC CO |
| L72R | 74999 | JOSLYN CORP |
| 38222-3010 | 79911 | OHIO BRASS CO |
Technical Data | NSN 5970-00-177-1611
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PETTICOAT |
| OUTSIDE DIAMETER | 9.000 INCHES NOMINAL |
| OVERALL HEIGHT | 6.500 INCHES NOMINAL |
| PINHOLE DIAMETER | 1.375 INCHES NOMINAL |
| RADIAL GROOVE RADIUS | 0.562 INCHES NOMINAL |
| PIN HOLE DEPTH | 2.125 INCHES NOMINAL |
| TOP WIRE GROOVE RADIUS | 0.750 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PORCELAIN |
| IDENTIFICATION CODE COLOR | BROWN |
| CONDUCTOR MECHANICAL ACCOMMODATION QUANTITY | 1 |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 400 MCM |
