NSN 5970-00-224-4269
Part Details | SUSPENSION INSULATOR
5970-00-224-4269 An insulator having an integral provision for the nonrigid assembling of one upon the other for the purpose of extending its insulating range. It is specifically designed to suspend a conductor from a tower or other support.
Alternate Parts: HHI435, 5970-00-224-4269, 00-224-4269, 5970002244269, 002244269
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-224-4269 | 00227 ( INSULATOR, SUSPENSION ) |
REFERENCE DRAWINGS & PICTURES

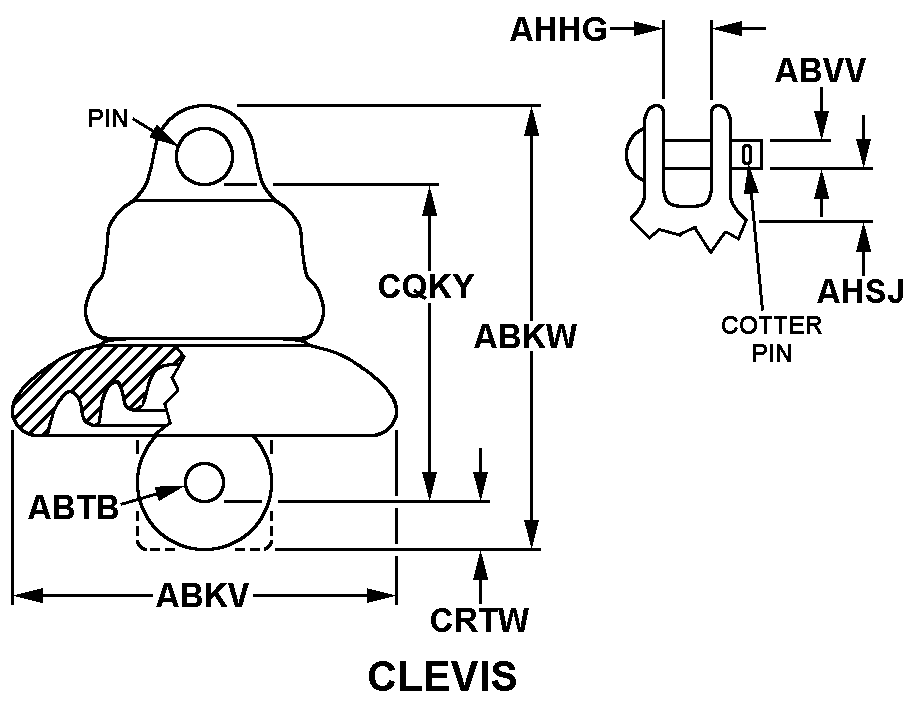

CLEVIS
Cross Reference | NSN 5970-00-224-4269
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HHI435 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5970-00-224-4269
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLEVIS |
| OUTSIDE DIAMETER | 6.000 INCHES NOMINAL |
| OVERALL HEIGHT | 7.250 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.875 INCHES NOMINAL |
| PIN DIAMETER | 0.625 INCHES NOMINAL |
| DISTANCE BETWEEN LEGS | 0.688 INCHES NOMINAL |
| LEG LENGTH | 0.688 INCHES NOMINAL |
| FIRST MOUNTING HOLE SPACING | 5.500 INCHES NOMINAL |
| DISTANCE FROM INSIDE OF MOUNTING HOLE TO OUTSIDE SURFACE | 0.500 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PORCELAIN |
| IDENTIFICATION CODE COLOR | BROWN |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED HOLE |
| NONDEFINITIVE SPEC/STD DATA | 1 CLASS AND IV TYPE |
