NSN 5975-00-146-6555
Part Details | ELECTRICAL WALL PLATE
5975-00-146-6555 An item designed to mount directly on a bracket or an electrical current carrying wiring device(s) such as switch(es) or outlet(s) (receptacle). The bracket(s) or electrical current carrying device is mounted in a JUNCTION BOX. For trade designated items designed to be attached directly on or through a bracket or electrical wiring device to a CONDUIT OUTLET, see COVER, CONDUIT OUTLET. For items designed for mounting directly on a JUNCTION BOX, see COVER, JUNCTION BOX.
Alternate Parts: SCB577852, 5975-00-146-6555, 00-146-6555, 5975001466555, 001466555
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 24, 1971 | 00-146-6555 | 07716 ( PLATE, WALL, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

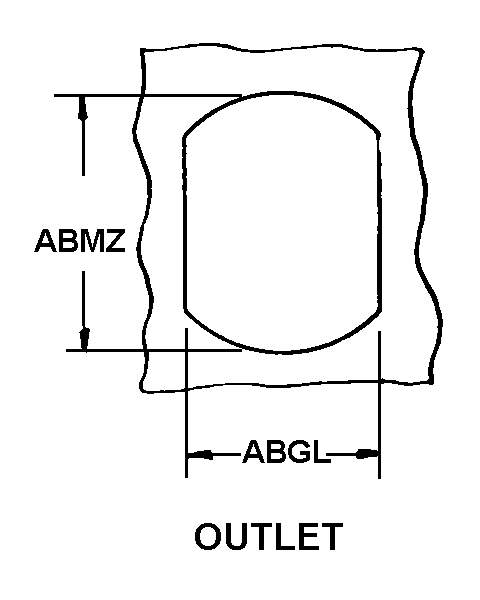

OUTLET
Cross Reference | NSN 5975-00-146-6555
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SCB577852 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5975-00-146-6555
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| UNIT TYPE | OUTLET |
| SURFACE TREATMENT | ENAMEL |
| COLOR | GREEN |
| GANG QUANTITY | 2 |
| OPENING QUANTITY | 2 |
| OPENING STYLE DESIGNATOR | OUTLET |
| INSULATING ADAPTER | NOT INCLUDED |
| COVER | NOT PROVIDED |
| LENGTH | 4.625 INCHES |
| WIDTH | 2.656 INCHES |
| MOUNTING HOLE QUANTITY | 3 |
| END ITEM IDENTIFICATION | AN/ARM-164 ELECTRONIC SHOP MAINTENANCE FACILITY |
