NSN 5975-00-152-1072
Part Details | ELECTRICAL BOX CONNECTOR
5975-00-152-1072 An item designed to mechanically connect in a straight line or an angle electrical conduit, conduit assemblies, wire, wireway, cable, or cable assemblies to a point of termination, such as a junction box, conduit outlet, or the like. The termination end must have an external thread with a boss or shoulder and may be furnished with a locknut or bondnut; or, must have internal thread with which is furnished an externally threaded hub with a wrenching feature; or be of a snap-in type that may be installed from either inside or outside the box and secured with a captive screw. It is not intended to join conduit to conduit. For angle type items having a male thread without a boss or shoulder, see ELBOW, ELECTRICAL CONDUIT. Does not include facilities to mount wiring devices. Excludes CHASE NIPPLE, CONDUIT.
Alternate Parts: SC1, D10734605, D10734-60-5, 7326792, 407, 13218E00032, 13218E0003-2, D10734605, D10734-60-5, 939B1, 1002, C8, 7481V, AA5055200I1ADSZ0.500, AA50552-00I-1-A-D-SZ0.500, AA50552, WF406, W-F-406, FEDSTD157, FED-STD-157, 708018701, 70-801870-1, 708018701, 70-801870-1, SP7123, SP5302, 45648631, 4564863-1, 45648631, 4564863-1, 708, 7492186P1, CU10071, CU1007-1, 2166EZ, 2102, XC401, XC-401, NC012, NC-012, 527, 254, 19032300, 5975-00-152-1072, 00-152-1072, 5975001521072, 001521072
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-152-1072 | 09663 ( BOX CONNECTOR, ELECTRICAL ) |

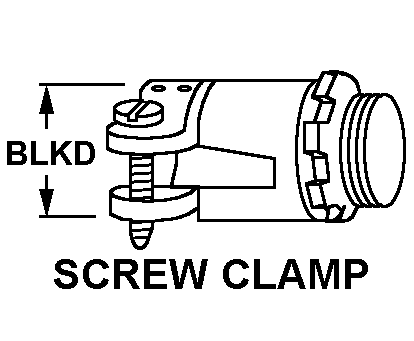

REFERENCE DRAWINGS & PICTURES
SCREW CLAMP
Cross Reference | NSN 5975-00-152-1072
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SC1 | 14046 | A-1 CONDUIT FITTINGS CORP |
| D10734-60-5 | 00742 | AIR PRODUCTS AND CHEMICALS, INC.DBA AIR PRODUCTS |
| 7326792 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| 407 | 05500 | BRIDGEPORT FITTINGS INC |
| 13218E0003-2 | 97403 | CECOM LR CENTER |
| D10734-60-5 | 81336 | CHIEF OF ENGINEERSDEPT OF ARMY |
| 939B1 | 56442 | DIAMOND REO TRUCK CO |
| 1002 | 72971 | EFCOR INC |
| C8 | 83879 | EGS ELECTRIC CO LLC |
| 7481V | 03743 | EGS ELECTRICAL GROUPAPPLETON DIV |
| AA50552-00I-1-A-D-SZ0.500 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| AA50552 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| W-F-406 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| FED-STD-157 | 06542 | FEDERAL STANDARDSPROMULGATED BY GENERAL SERVICES |
| 70-801870-1 | 07397 | GENERAL DYNAMICS ADVANCEDINFORMATION SYSTEMS INC. |
| 70-801870-1 | 04655 | GENERAL DYNAMICS MISSION SYSTEMS,INC. |
| SP7123 | 24446 | GENERAL ELECTRIC COMPANY |
| SP5302 | 24446 | GENERAL ELECTRIC COMPANY |
| 4564863-1 | 31550 | HARRIS CORPORATIONDBA NIGHT VISION & COMMUNICATIONS |
| 4564863-1 | 28528 | ITT INDUSTRIES INCITT AEROSPACE COMMUNICATIONS |
| 708 | 81284 | MIDWEST ELECTRIC MFG CORPSUB OF CROUSE-HINDS CO |
| 7492186P1 | 33173 | MPD, INC. |
| CU1007-1 | 92755 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDBA LAND & SELF PROTECTION SYSTEM |
| 2166EZ | 76655 | PORTER H K CO INC ELECTRICAL DIVAMBRIDGE WORKS |
| 2102 | 28488 | RACO, A DIVISION OF HUBBELLINCORPORATED(DELAWARE) |
| XC-401 | 56501 | THOMAS & BETTS CORPORATION |
| NC-012 | 56501 | THOMAS & BETTS CORPORATION |
| 527 | 56501 | THOMAS & BETTS CORPORATION |
| 254 | 56501 | THOMAS & BETTS CORPORATION |
| 19032300 | 60532 | TRANE U.S. INC.DBA TRANE |
Technical Data | NSN 5975-00-152-1072
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SCREW CLAMP |
| MATERIAL | 0$DSTA000 |
| SURFACE TREATMENT | 0$DZNA000 |
| FURNISHED ITEMS | LOCKNUT |
| NONDEFINITIVE SPEC/STD DATA | 1 CLASS AND A STYLE AND 1 TYPE |
| SUPPLEMENTARY FEATURES | END ITEM H-3 HELICOPTER SUPPORT EQUIPMENT |
