NSN 5975-00-153-6392
Part Details | JUNCTION BOX
5975-00-153-6392 An enclosure of other than cast metal designed to house, mount, and protect, but does not include wiring connections or electrical device(s) such as terminals and/or terminal boards, switches, jacks, fuseholders, connectors, circuit breakers and the like. It is designed for and may include a cover and such accessories as mounting hardware, brackets, locks, clamps, mounts and conduit fittings. Excludes CONDUIT OUTLET; and CHAMBER, CABLE TERMINAL. For boxes which include electrical device(s) such as terminals and/or terminal boards, switches, fuseholders, jacks, connectors, circuit breakers and the like, or combinations thereof, see SWITCH BOX; FUZE BOX; JACK BOX; TERMINAL BOX; CIRCUIT BREAKER BOX; and DISTRIBUTION BOX. For boxes wired to provide the interconnecting facilities for a specific major group of electronic items outside of the box, see INTERCONNECTING BOX. See also INTERCONNECTING CABINET.
Alternate Parts: 30 12, 30 1-2, AA592141A2, A-A-59214-1A2, AA59214, A-A-59214, WJ800, W-J-800, FEDSTD128, 3012, 3-0-1-2, 2900, 100, 24151 12, 24151 1-2, 24151 12, 24151 1-2, 5975-00-153-6392, 00-153-6392, 5975001536392, 001536392
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-153-6392 | 06219 ( JUNCTION BOX ) |

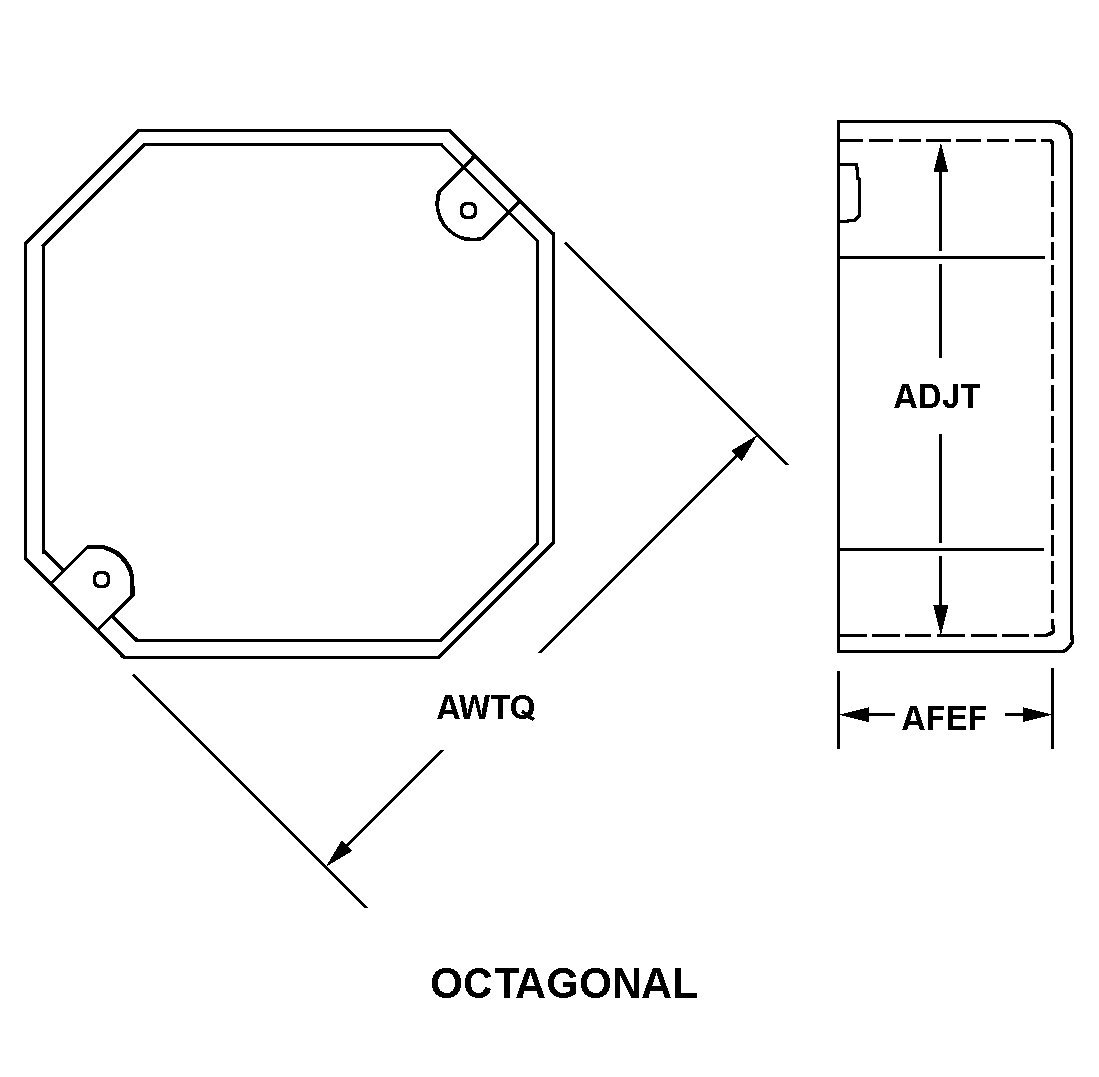

REFERENCE DRAWINGS & PICTURES
OCTAGONAL
Cross Reference | NSN 5975-00-153-6392
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30 1-2 | 03743 | EGS ELECTRICAL GROUPAPPLETON DIV |
| A-A-59214-1A2 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| A-A-59214 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| W-J-800 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| FEDSTD128 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 3-0-1-2 | 90759 | NI INDUSTRIES INCBOWERS MFG CO DIV |
| 2900 | 76655 | PORTER H K CO INC ELECTRICAL DIVAMBRIDGE WORKS |
| 100 | 28488 | RACO, A DIVISION OF HUBBELLINCORPORATED(DELAWARE) |
| 24151 1-2 | 56501 | THOMAS & BETTS CORPORATION |
| 24151 1-2 | 78229 | THOMAS AND BETTS CORPAMERICAN ELECTRIC DIV |
Technical Data | NSN 5975-00-153-6392
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OCTAGONAL |
| INSIDE WIDTH | 3.094 INCHES NOMINAL |
| DISTANCE ACROSS FLATS | 3.250 INCHES NOMINAL |
| INSIDE DEPTH | 1.500 INCHES NOMINAL |
| ENTRANCE QUANTITY | 5 |
| COVER MOUNTING HOLE QUANTITY | 2 |
| COVER ATTACHMENT METHOD | SCREW ACCOMMODATION |
| NONDEFINITIVE SPEC/STD DATA | A SIZE AND 2 STYLE AND I TYPE |
| SUPPLEMENTARY FEATURES | END ITEM PARTIOT MISSILE |
