NSN 5975-00-178-0516
Part Details | STUFFING TUBE
5975-00-178-0516 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Alternate Parts: 9S5342LREV10TYPE53SYMB0L1742, 5975-00-178-0516, 00-178-0516, 5975001780516, 001780516
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-178-0516 | 00882 ( STUFFING TUBE ) |

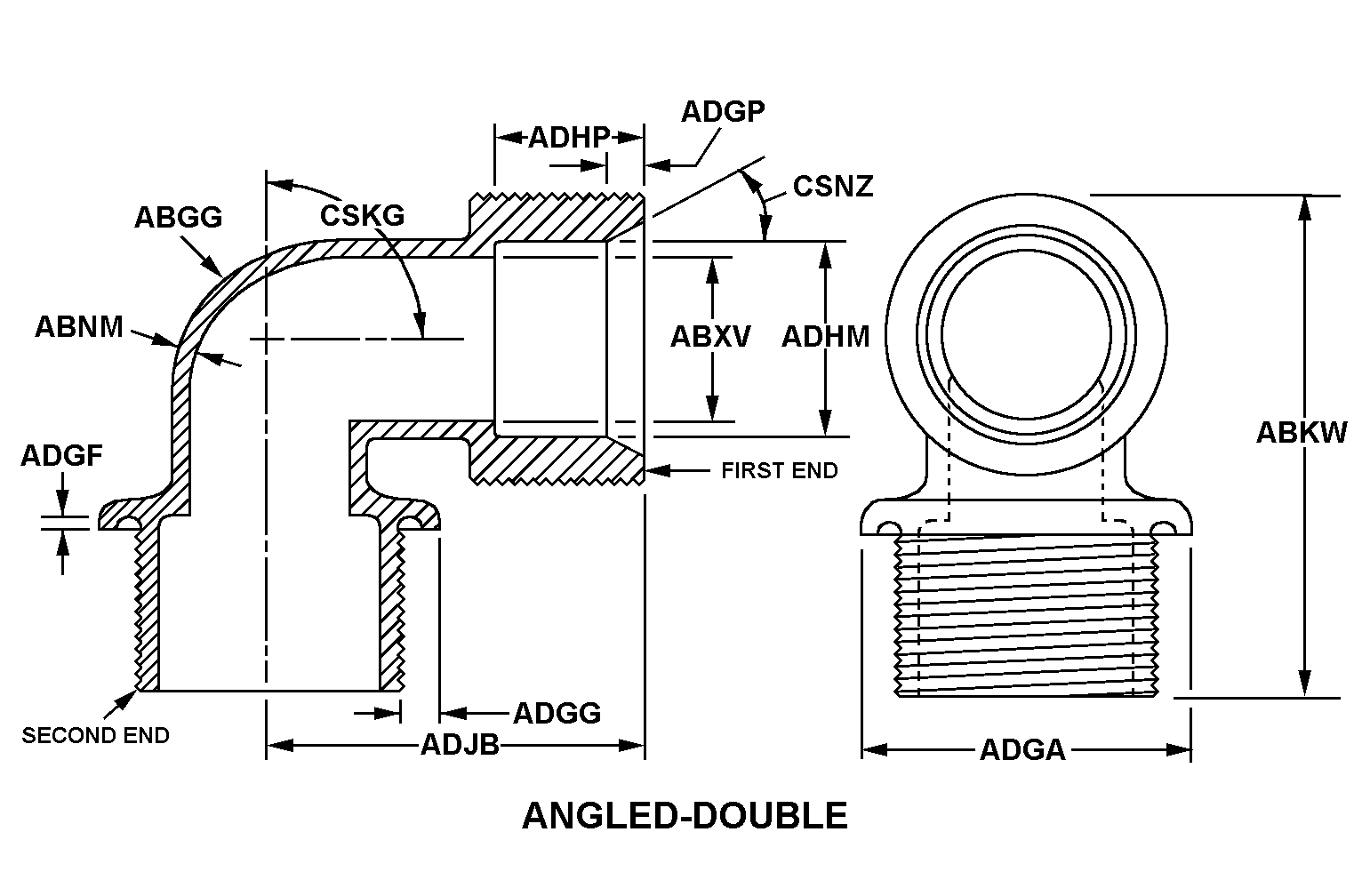

REFERENCE DRAWINGS & PICTURES
ANGLED-DOUBLE
Cross Reference | NSN 5975-00-178-0516
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9S5342LREV10TYPE53SYMB0L1742 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5975-00-178-0516
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGLED-DOUBLE |
| OVERALL OUTSIDE DIAMETER | 1.229 INCHES NOMINAL |
| BEND ANGLE | 45.0 DEGREES NOMINAL |
| PACKING CHAMBER QUANTITY | 1 |
| MOUNTING METHOD | BRAZED |
| FURNISHED ITEMS | GLAND NUT AND GLAND RING AND WASHER |
| SPECIAL MARKINGS | C |
