NSN 5975-00-179-4673

Part Details | ELECTRICAL CONDUIT ADAPTER

5975-00-179-4673 An item designed to couple or join two different types or sizes of conduits, and/or to be inserted in the opening of a conduit outlet or box to accommodate a conduit of a larger or smaller size; or it may be designed with internal thread on one end for mating with an electrical connector and an external thread on the other end for mating with a conduit coupling nut; or to establish necessary mechanical accommodations between an electrical conduit, conduit assembly and an electrical connector. Excludes REDUCING WASHER, KNOCKOUT and BOX CONNECTOR, ELECTRICAL. See also ADAPTER, CABLE TO CONNECTOR; and CHASE NIPPLE, CONDUIT.

Alternate Parts: CVC25993228, CVC2599-32-28, 5975-00-179-4673, 00-179-4673, 5975001794673, 001794673

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59MAR 19, 196900-179-467306935 ( ADAPTER, ELECTRICAL CONDUIT )
REFERENCE DRAWINGS & PICTURES

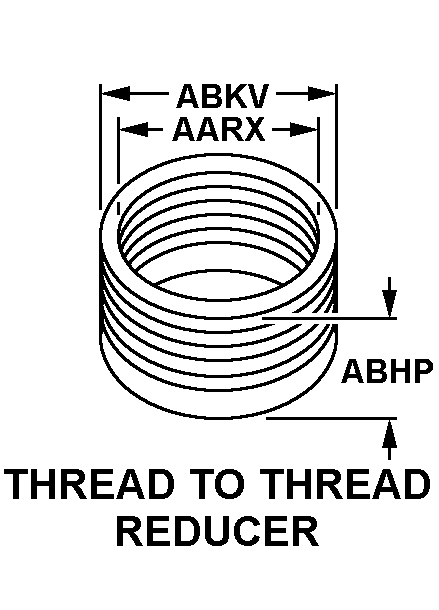

THREAD TO THREAD REDUCER

Cross Reference | NSN 5975-00-179-4673
Part Number Cage Code Manufacturer
CVC2599-32-2880378TRIUMPH AEROSTRUCTURES, LLCDBA TRIUMPH AEROSTRUCTURES - VOUGHT
Technical Data | NSN 5975-00-179-4673
Characteristic Specifications
STYLE DESIGNATOR THREAD TO THREAD REDUCER
OVERALL LENGTH0.562 INCHES NOMINAL
MATERIAL PLASTIC POLYAMIDE
MATERIAL DOCUMENT AND CLASSIFICATIONMIL-P-20693,TYPE I MIL SPEC SINGLE MATERIAL RESPONSE
