NSN 5975-00-186-8879
Part Details | STUFFING TUBE ADAPTER
5975-00-186-8879 A threaded or unthreaded item designed to mate with the mounting threads or mounting surfaces of a STUFFING TUBE, and to mount the STUFFING TUBE to a continuous structure (bulkhead or deck). The adapter may be recessed on the face to accommodate a gasket and/or washer.
Alternate Parts: M2423515005, M24235-15-005, MILS2423515, MIL-S-24235/15, MILS24235, MIL-S-24235, 9S5355LALT9SIZEE, 5975-00-186-8879, 00-186-8879, 5975001868879, 001868879
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-186-8879 | 05826 ( ADAPTER, STUFFING TUBE ) |
REFERENCE DRAWINGS & PICTURES

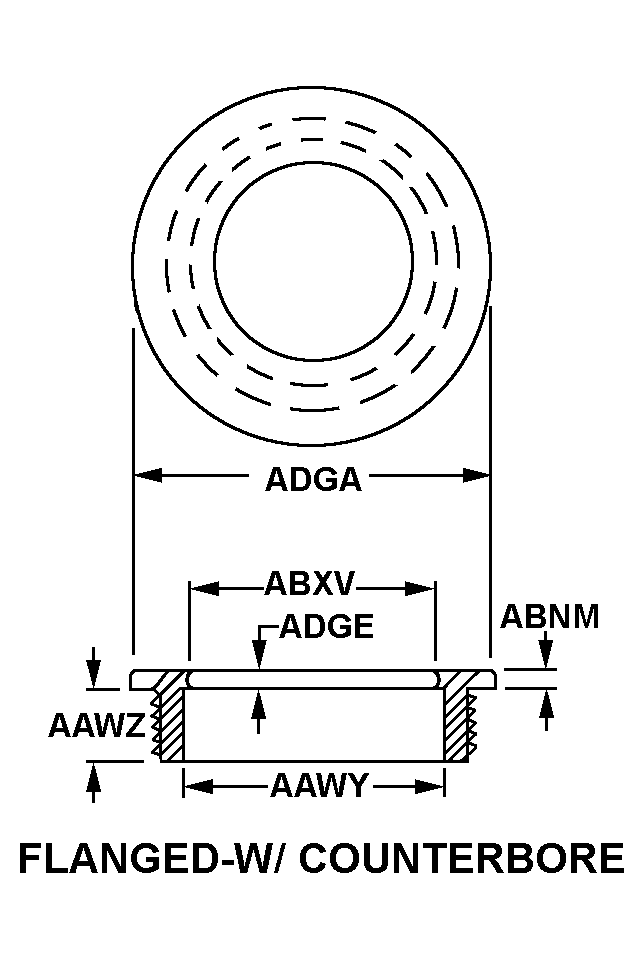

FLANGED-W/COUNTERBORE
Cross Reference | NSN 5975-00-186-8879
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M24235-15-005 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-S-24235/15 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-S-24235 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 9S5355LALT9SIZEE | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5975-00-186-8879
| Characteristic | Specifications |
|---|---|
| SIZE | 0.812 INCHES NOMINAL |
| STYLE DESIGNATOR | FLANGED-W/COUNTERBORE |
| COUNTERBORE DIAMETER | 0.965 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.687 INCHES NOMINAL |
| THICKNESS | 0.062 INCHES NOMINAL |
| BORE DIAMETER | 0.965 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.438 INCHES NOMINAL |
| BORE LENGTH | 0.687 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 14 |
| THREAD LENGTH | 0.625 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL MARKINGS | E |
