NSN 5975-00-226-3185
Part Details | ELECTRICAL EQUIPMENT MOUNTING BASE
5975-00-226-3185 A tray or racklike item designed to provide a supporting surface to which electrical/electronic equipment may be secured when installed in aircraft, vehicles, or other types of mobile equipment. It may be equipped with shock or vibration isolation devices and/or wires, cables, terminal boards, connectors, etc. Excludes BASE, ELECTRICAL EQUIPMENT RACK and MOUNT, RESILIENT. See also RACK, ELECTRICAL EQUIPMENT.
Alternate Parts: 128AB108103, 128AB10810-3, 5975-00-226-3185, 00-226-3185, 5975002263185, 002263185
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 03, 1968 | 00-226-3185 | 29923 ( MOUNTING BASE, ELECTRICAL EQUIPMENT ) |

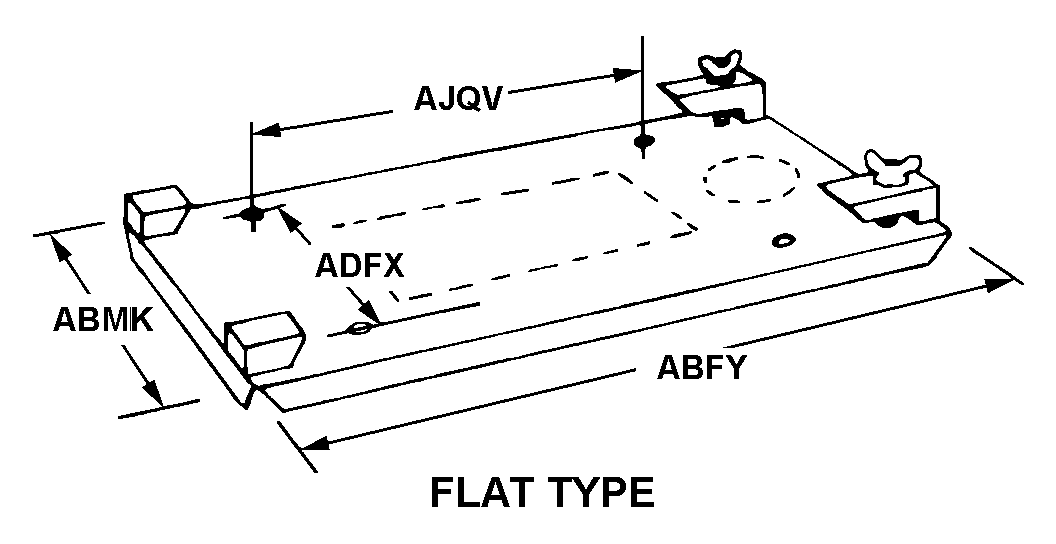

REFERENCE DRAWINGS & PICTURES
FLAT TYPE
Cross Reference | NSN 5975-00-226-3185
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 128AB10810-3 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
Technical Data | NSN 5975-00-226-3185
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FLAT TYPE |
| OVERALL DEPTH | 18.005 INCHES NOMINAL |
| OVERALL WIDTH | 8.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 6.635 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG DEPTH | 15.935 INCHES NOMINAL |
| MATERIAL | ALUMINUM |
| MOUNTING PROVISION | CAMLOC FASTENER |
| COMPONENT MOUNTING FACILITY TYPE AND QUANTITY | 2 CAMLOC FASTENER |
