NSN 5975-00-232-7632
Part Details | CONDUIT OUTLET
5975-00-232-7632 An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX.
Alternate Parts: X17, WC586, 5975-00-232-7632, 00-232-7632, 5975002327632, 002327632
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-232-7632 | 06945 ( CONDUIT OUTLET ) |

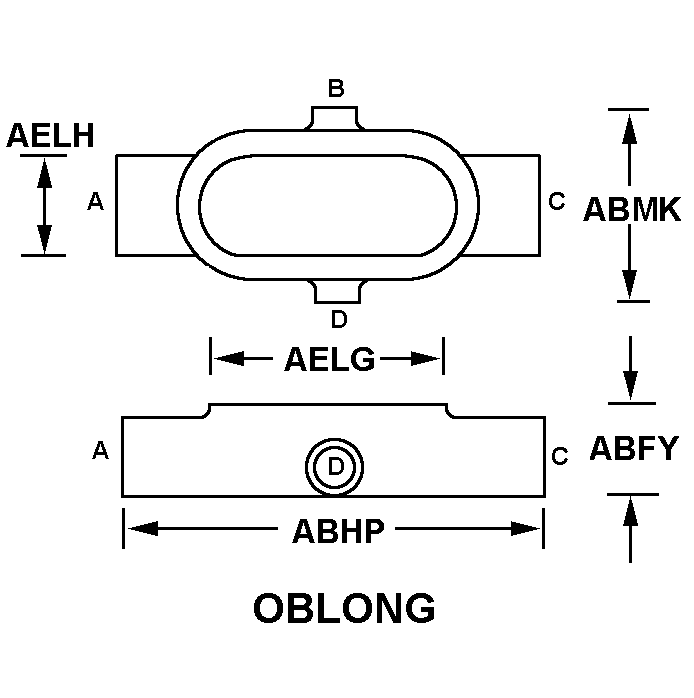

REFERENCE DRAWINGS & PICTURES
OBLONG
Cross Reference | NSN 5975-00-232-7632
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| X17 | 15235 | CROUSE-HINDS CO |
| WC586 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5975-00-232-7632
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OBLONG |
| COVER OPENING LENGTH | 3.125 INCHES NOMINAL |
| COVER OPENING WIDTH | 0.687 INCHES NOMINAL |
| TRADE DESIGNATION | X SERIES FORM 7 |
| COVER MOUNTING SURFACE TYPE | FLAT |
| COVER MOUNTING GASKET TYPE | SOLID CENTER |
| COVER QUANTITY | 1 |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | NOT RATED |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND X STYLE AND 1 DESIGN |
