NSN 5975-00-243-1275

Part Details | ELECTRICAL WALL PLATE

5975-00-243-1275 An item designed to mount directly on a bracket or an electrical current carrying wiring device(s) such as switch(es) or outlet(s) (receptacle). The bracket(s) or electrical current carrying device is mounted in a JUNCTION BOX. For trade designated items designed to be attached directly on or through a bracket or electrical wiring device to a CONDUIT OUTLET, see COVER, CONDUIT OUTLET. For items designed for mounting directly on a JUNCTION BOX, see COVER, JUNCTION BOX.

Alternate Parts: 91071, CATAL0G91071, WP455, GU91071, 91071, 91071, 91071, HUBBELL NP1, 66457, 66457, 7532464, UL 514C, 91071, CATAL0G91071, 5975-00-243-1275, 00-243-1275, 5975002431275, 002431275

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196300-243-127507716 ( PLATE, WALL, ELECTRICAL )
REFERENCE DRAWINGS & PICTURES

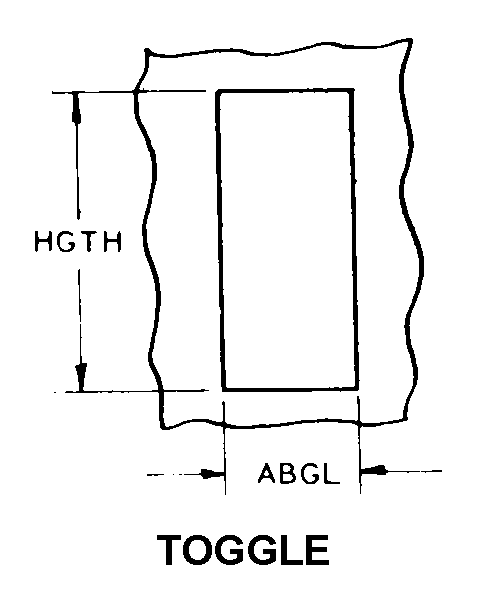

TOGGLE

Cross Reference | NSN 5975-00-243-1275
Part Number Cage Code Manufacturer
9107171183BRYANT ELECTRIC
CATAL0G9107171183BRYANT ELECTRIC
WP45581348FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES
GU9107173773GENERAL ELECTRIC COCONSTRUCTION MATERIALS DIVISION
9107126042GRAYBAR ELECTRIC COMPANY, INC.
9107100645GRAYBAR ELECTRIC COMPANY, INC.
9107174545HUBBELL INCWIRING DEVICE DIV
HUBBELL NP174545HUBBELL INCWIRING DEVICE DIV
664571PQF4L3 TECHNOLOGIES, INC.DBA LINK SIMULATION & TRAINING
6645736378RAYTHEON TECHNICAL SERVICES COMPANY
753246419207U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM
UL 514C81345UNDERWRITERS LABORATORIES INC.
9107179500WESTINGHOUSE ELECTRIC CORP
CATAL0G9107179500WESTINGHOUSE ELECTRIC CORP
Technical Data | NSN 5975-00-243-1275
Characteristic Specifications
MATERIAL PLASTIC PHENOLIC
UNIT TYPE TOGGLE SWITCH
SURFACE TREATMENT PAINT
COLOR BROWN
GANG QUANTITY1
OPENING QUANTITY1
OPENING STYLE DESIGNATOR TOGGLE
WIDTH0.406 INCHES NOMINAL
HEIGHT0.925 INCHES NOMINAL
INSULATING ADAPTER NOT INCLUDED
COVER NOT PROVIDED
LENGTH4.500 INCHES
WIDTH2.750 INCHES
MOUNTING HOLE QUANTITY2
NONDEFINITIVE SPEC/STD DATA1 TYPE
