NSN 5975-00-255-2096
Part Details | STUFFING TUBE PACKING NUT
5975-00-255-2096 A threaded or unthreaded device, with an unthreaded center hole to accommodate an electrical cable or tube, designed to mate with the threads or sealing components of a stuffing tube body for the purpose of compressing packing around the electrical cable or tube. A component of a STUFFING TUBE.
Alternate Parts: M19622100005, M19622/10-0005, MILS1962210, MIL-S-19622/10, MILS19622, MIL-S-19622, 5975-00-255-2096, 00-255-2096, 5975002552096, 002552096
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 20, 1973 | 00-255-2096 | 15324 ( PACKING NUT, STUFFING TUBE ) |
REFERENCE DRAWINGS & PICTURES

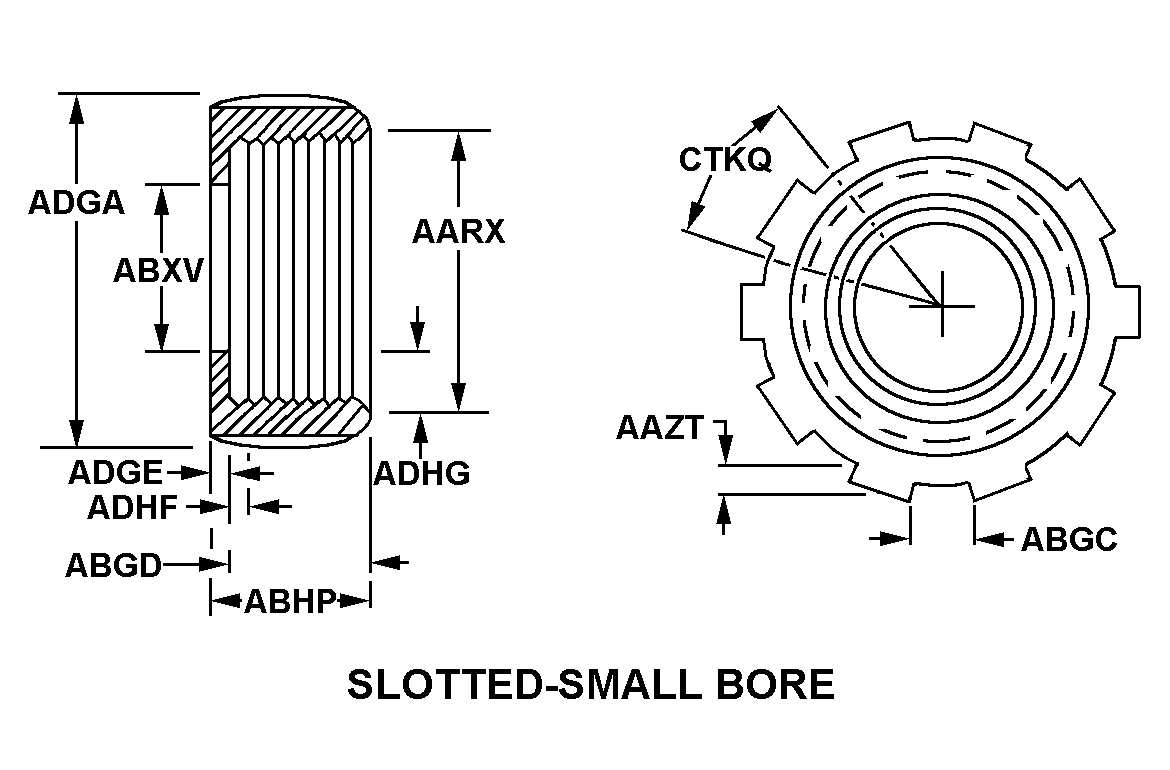

SLOTTED-SMALL BORE
Cross Reference | NSN 5975-00-255-2096
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M19622/10-0005 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-S-19622/10 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-S-19622 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 5975-00-255-2096
| Characteristic | Specifications |
|---|---|
| SIZE | 0.825 INCHES NOMINAL |
| STYLE DESIGNATOR | SLOTTED-SMALL BORE |
| INSIDE DIAMETER | 1.294 INCHES NOMINAL |
| SLOT DEPTH | 0.093 INCHES NOMINAL |
| SLOT WIDTH | 0.250 INCHES NOMINAL |
| SLOT LENGTH | 0.656 INCHES NOMINAL |
| OVERALL LENGTH | 0.656 INCHES NOMINAL |
| BORE DIAMETER | 0.887 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.750 INCHES NOMINAL |
| BORE LENGTH | 0.093 INCHES NOMINAL |
| INSIDE RECESS LENGTH | 0.094 INCHES NOMINAL |
| INSIDE RECESS WIDTH | 0.204 INCHES NOMINAL |
| SLOT ANGLE | 45.0 DEGREES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 1.375 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 12 |
| THREAD LENGTH | 0.469 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
