NSN 5975-00-255-6022

Part Details | ELECTRICAL ROSETTE

5975-00-255-6022 An item designed for the connection and support of an electrical drop cord.

Alternate Parts: 9880, 9065, 5975-00-255-6022, 00-255-6022, 5975002556022, 002556022

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196300-255-602208056 ( ROSETTE, ELECTRICAL )

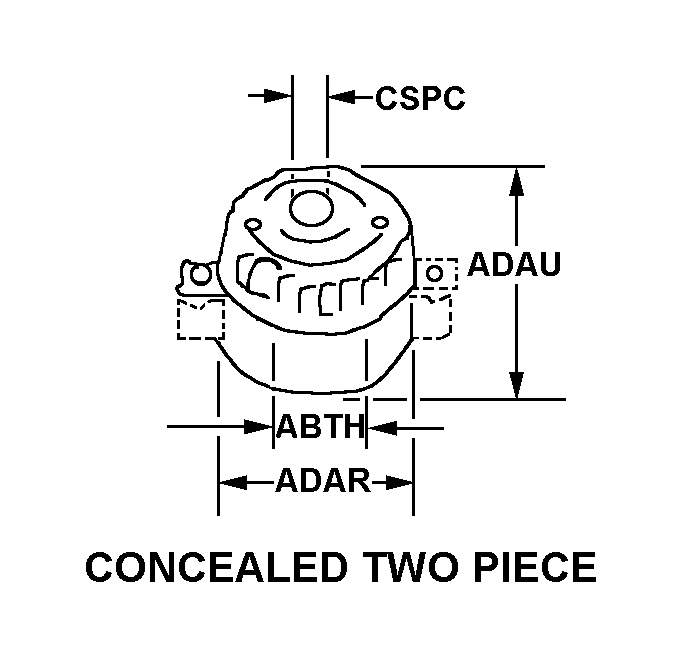

REFERENCE DRAWINGS & PICTURES

CONCEALED TWO PIECE

Cross Reference | NSN 5975-00-255-6022
Part Number Cage Code Manufacturer
988075582LEVITON MANUFACTURING CO., INC.DBA LEVITON
906575582LEVITON MANUFACTURING CO., INC.DBA LEVITON
Technical Data | NSN 5975-00-255-6022
Characteristic Specifications
STYLE DESIGNATOR CONCEALED TWO PIECE
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES0.500 INCHES NOMINAL
BODY OUTSIDE DIAMETER2.128 INCHES NOMINAL
BODY HEIGHT1.750 INCHES NOMINAL
ACCOMMODATION HOLE INSIDE DIAMETER0.437 INCHES NOMINAL
MOUNTING METHOD SCREW
MOUNTING DEVICE QUANTITY2
CONDUCTOR ACCOMMODATION QUANTITY2
TERMINAL TYPE AND QUANTITY2 SCREW
FEATURES PROVIDED COMPONENT SWITCH
SPECIAL FEATURESRATED 660 W.
