NSN 5975-00-280-3849

Part Details | STUFFING TUBE PACKING NUT

5975-00-280-3849 A threaded or unthreaded device, with an unthreaded center hole to accommodate an electrical cable or tube, designed to mate with the threads or sealing components of a stuffing tube body for the purpose of compressing packing around the electrical cable or tube. A component of a STUFFING TUBE.

Alternate Parts: MS242359062, MS24235-9-062, MILS24235, MIL-S-24235, 329108PC142, 220363PC4, 212883PC12, 9S5235LREV19PC2, 5975-00-280-3849, 00-280-3849, 5975002803849, 002803849

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196300-280-384915324 ( PACKING NUT, STUFFING TUBE )

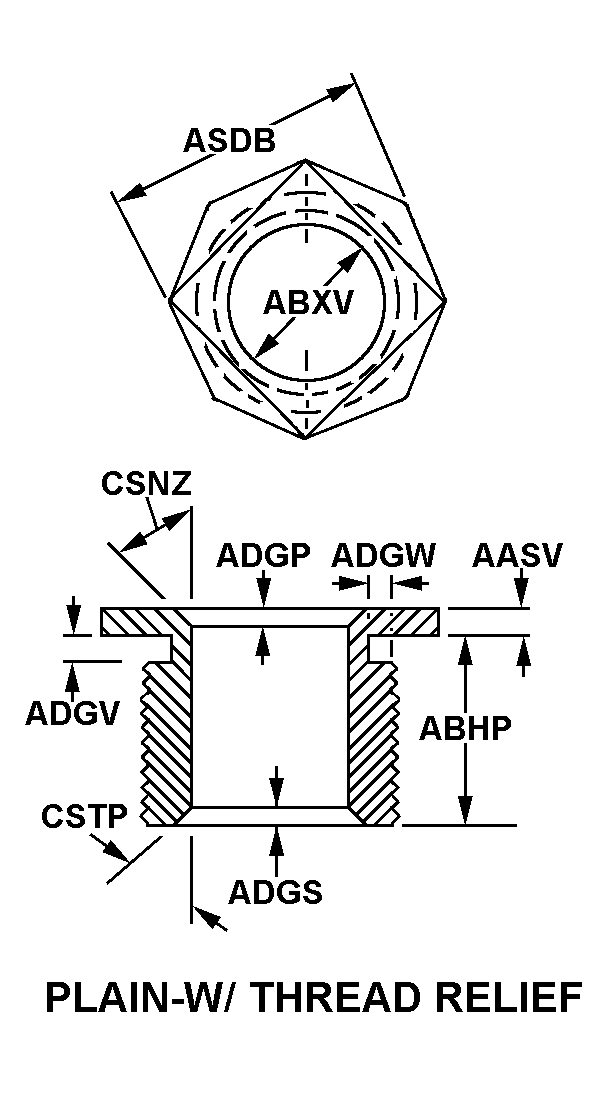

REFERENCE DRAWINGS & PICTURES

PLAIN-W/THREAD RELIEF

Cross Reference | NSN 5975-00-280-3849
Part Number Cage Code Manufacturer
MS24235-9-06281349MILITARY SPECIFICATIONSPROMULGATED BY MILITARY
MIL-S-2423581349MILITARY SPECIFICATIONSPROMULGATED BY MILITARY
329108PC14210001NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT
220363PC410001NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT
212883PC1210001NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT
9S5235LREV19PC280064NAVAL SHIP SYSTEMS COMMAND
Technical Data | NSN 5975-00-280-3849
Characteristic Specifications
SIZE0.515 INCHES NOMINAL
STYLE DESIGNATOR PLAIN-W/THREAD RELIEF
WIDTH ACROSS FLATS1.125 INCHES NOMINAL
HEAD LENGTH0.188 INCHES NOMINAL
OVERALL LENGTH1.062 INCHES NOMINAL
BORE DIAMETER0.515 INCHES NOMINAL
FIRST END CHAMFER DEPTH0.125 INCHES NOMINAL
THREAD RELIEF LENGTH0.188 INCHES NOMINAL
THREAD RELIEF DEPTH0.188 INCHES NOMINAL
FIRST END CHAMFER ANGLE45.0 DEGREES NOMINAL
SECOND END CHAMFER ANGLE0.0 DEGREES NOMINAL
THREAD SERIES DESIGNATOR UN
NOMINAL THREAD SIZE1.000 INCHES
THREAD CLASS2A
THREAD QUANTITY PER INCH12
THREAD LENGTH0.688 INCHES NOMINAL
THREAD DIRECTION RIGHT-HAND
SPECIAL MARKINGSB
