NSN 5975-00-280-3975
Part Details | BLANK PANEL
5975-00-280-3975 A panel designed to fill a space not occupied by actual operating components, and may have instructions, component designations, or component identifications etched or printed thereon.
Alternate Parts: B6867GR5, 2287926G1, RED2682337SIZEE, 5975-00-280-3975, 00-280-3975, 5975002803975, 002803975
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-280-3975 | 15195 ( PANEL, BLANK ) |
REFERENCE DRAWINGS & PICTURES

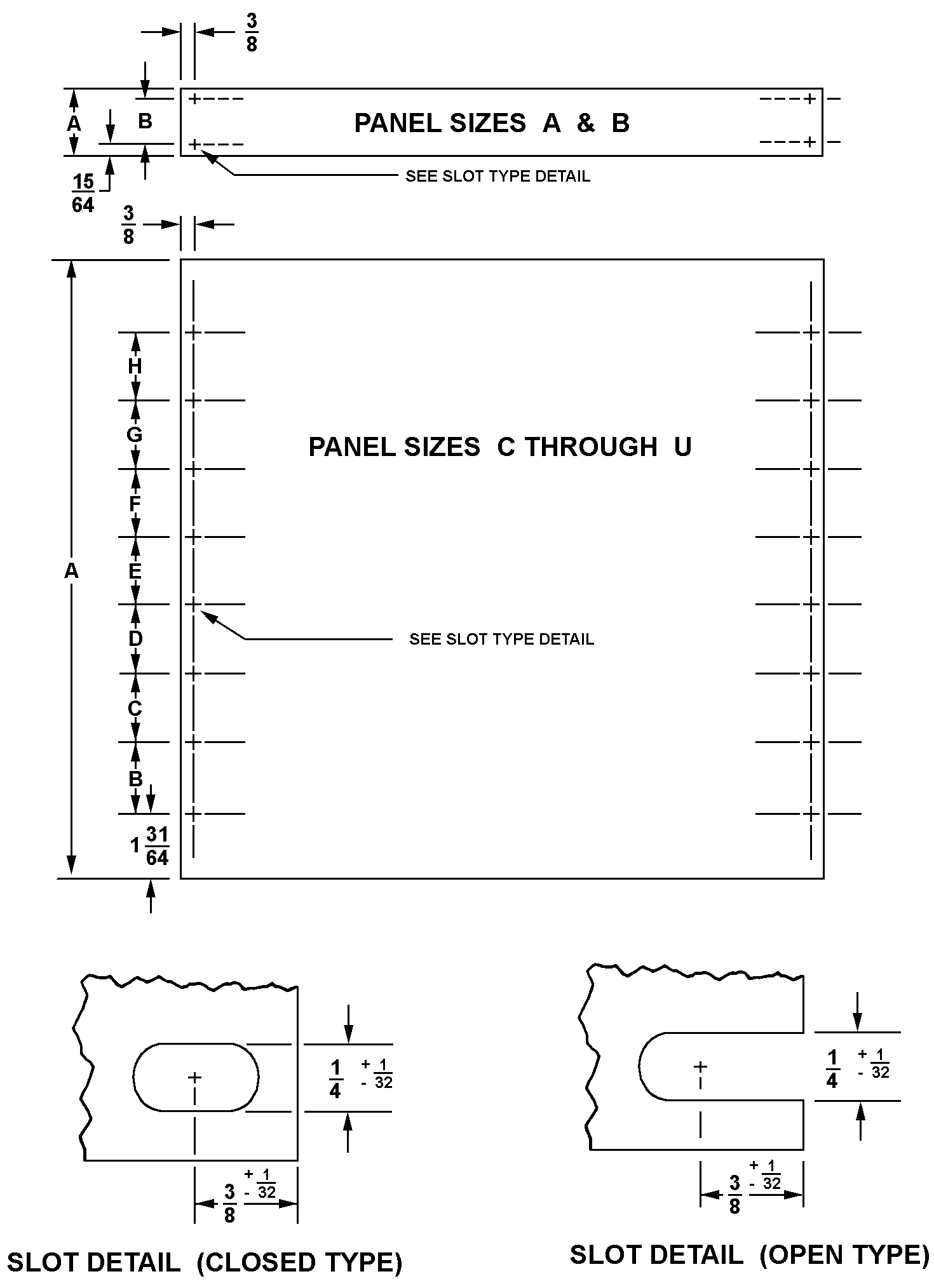

CLOSED SLOT
BLANK, PLAIN DESIGN
Cross Reference | NSN 5975-00-280-3975
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B6867GR5 | 70215 | DUMONT AIRPLANE AND MARINEINSTRUMENTS INC |
| 2287926G1 | 28528 | ITT INDUSTRIES INCITT AEROSPACE COMMUNICATIONS |
| RED2682337SIZEE | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5975-00-280-3975
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BLANK, PLAIN DESIGN |
| OVERALL HEIGHT | 8.719 INCHES NOMINAL |
| OVERALL WIDTH | 19.000 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.188 INCHES NOMINAL |
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | ENAMEL |
| STANDARD MOUNTING PATTERN DESIGNATOR | CLOSED SLOT |
