NSN 5975-00-280-8570
Part Details | ELECTRICAL CONDUIT UNION
5975-00-280-8570 An item comprising three members, so constructed that one of the members holds the remaining two in a fixed butted position; generally used to connect two conduits, conduit fittings, or a conduit and a conduit fitting in such a manner that they may be disconnected without disturbing the rest of the conduit line. See also COUPLING, ELECTRICAL CONDUIT.
Alternate Parts: WF406, 5975-00-280-8570, 00-280-8570, 5975002808570, 002808570
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-280-8570 | 06943 ( UNION, ELECTRICAL CONDUIT ) |
REFERENCE DRAWINGS & PICTURES

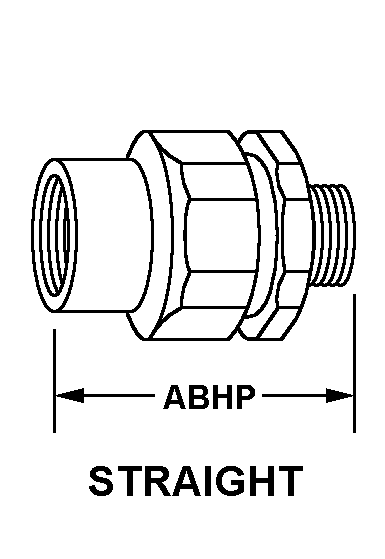

STRAIGHT
Cross Reference | NSN 5975-00-280-8570
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WF406 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5975-00-280-8570
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT |
| OVERALL LENGTH | 2.312 INCHES NOMINAL |
| MATERIAL | 0$DSTA000 |
| SURFACE TREATMENT | 0$DZNA000 |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF-NEMA TYPE 13 |
| NONDEFINITIVE SPEC/STD DATA | III TYPE |
