NSN 5975-00-280-9809
Part Details | ELECTRICAL CABLE SPLICE PROTECTOR
5975-00-280-9809 An item specifically designed to be mechanically fastened to an electrical cable on each end of a splice to protect the splice from excessive strain. It usually has provisions for making a waterproof or moisture-proof joint. Excludes INSULATION SLEEVING, ELECTRICAL.
Alternate Parts: S6906, 5975-00-280-9809, 00-280-9809, 5975002809809, 002809809
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-280-9809 | 11521 ( PROTECTOR, SPLICE, ELECTRICAL CABLE ) |

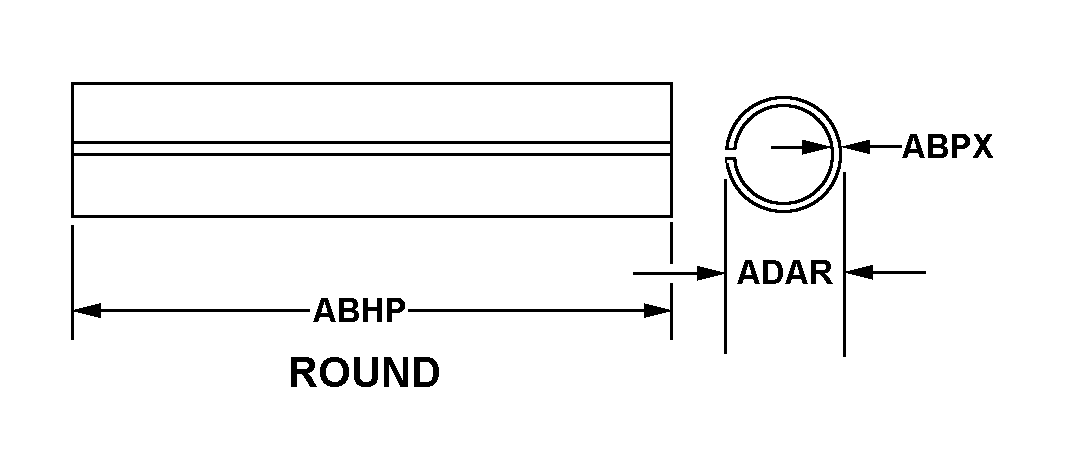

REFERENCE DRAWINGS & PICTURES
ROUND
Cross Reference | NSN 5975-00-280-9809
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S6906 | 04773 | GTE COMMUNICATION SYSTEMS CORP |
Technical Data | NSN 5975-00-280-9809
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND |
| OVERALL LENGTH | 20.000 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.138 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 4.875 INCHES NOMINAL |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WEATHERPROOF-NEMA TYPE 3 |
| SEALING METHOD | COMPOUND |
