NSN 5975-00-284-9256
Part Details | CONDUIT OUTLET
5975-00-284-9256 An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX.
Alternate Parts: A37, WC586, 5975-00-284-9256, 00-284-9256, 5975002849256, 002849256
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-284-9256 | 06945 ( CONDUIT OUTLET ) |
REFERENCE DRAWINGS & PICTURES
BLANK

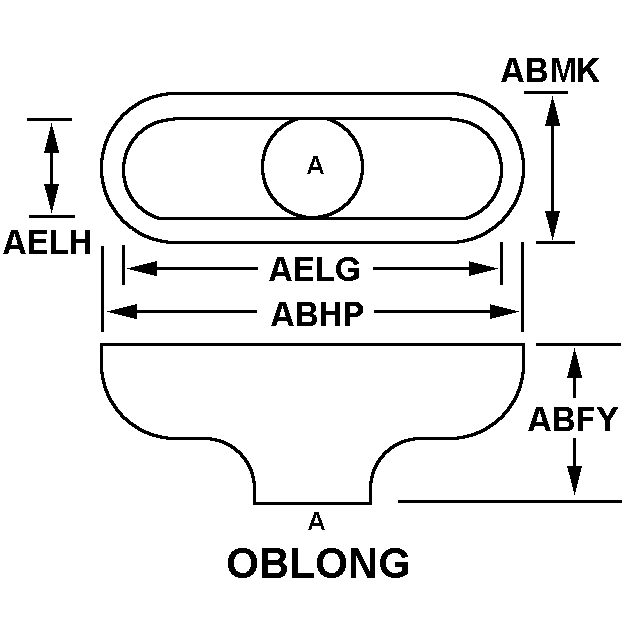

OBLONG
Cross Reference | NSN 5975-00-284-9256
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A37 | 15235 | CROUSE-HINDS CO |
| WC586 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5975-00-284-9256
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OBLONG |
| OVERALL DEPTH | 2.875 INCHES NOMINAL |
| OVERALL LENGTH | 5.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| COVER OPENING LENGTH | 4.500 INCHES NOMINAL |
| COVER OPENING WIDTH | 1.375 INCHES NOMINAL |
| TRADE DESIGNATION | A SERIES FORM 7 |
| COVER MOUNTING SURFACE TYPE | FLAT |
| COVER MOUNTING GASKET TYPE | SOLID CENTER |
| COVER QUANTITY | 1 |
| FUNCTIONAL COVER STYLE | BLANK |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | NOT RATED |
| FURNISHED ITEMS | SETSCREW |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND A STYLE AND 1 DESIGN |
