NSN 5975-00-295-9864
Part Details | INTERIOR CABLE RACK
5975-00-295-9864 An open frame structure primarily designed to support electrical cables in buildings and shelters. Its purpose is to provide, by itself or by joining to similar structures, a path or runway for cable which may connect two or more pieces of electrical equipment. It does not include items designed to hold a single cable. See also RACK, CABLE, UNDERGROUND; and HANGER, CABLE.
Alternate Parts: P420634, P420634, CR116, P420634, P420634, 20036, 2003-6, 0020030630, 5975-00-295-9864, 00-295-9864, 5975002959864, 002959864
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-295-9864 | 08082 ( RACK, CABLE, INTERIOR ) |
REFERENCE DRAWINGS & PICTURES

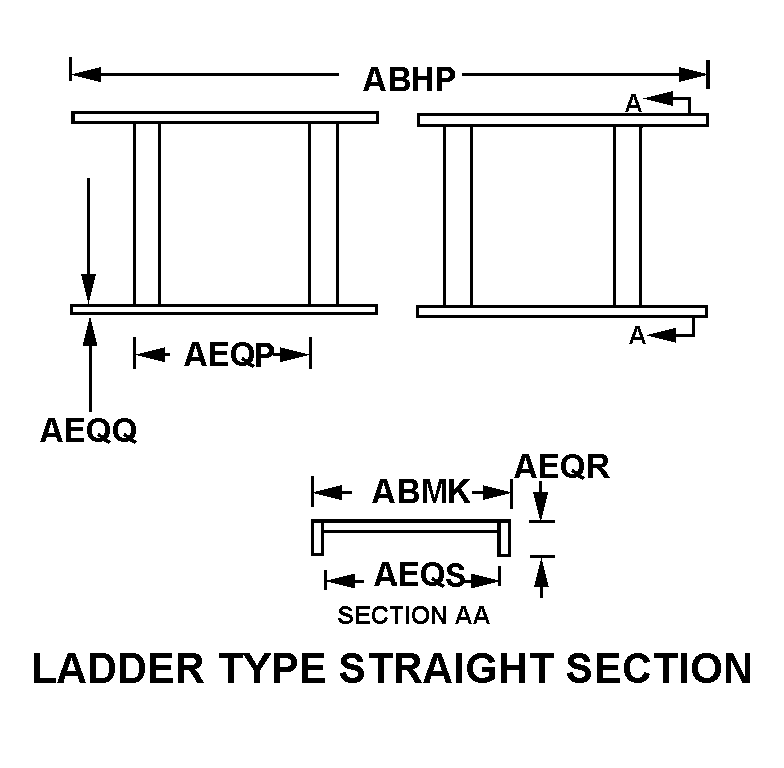

LADDER TYPE STRAIGHT SECTION
Cross Reference | NSN 5975-00-295-9864
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P420634 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| P420634 | 70408 | AT AND T CORP |
| CR116 | 84434 | HURON METAL PRODUCTS INC |
| P420634 | 3B4M0 | LUCENT TECHNOLOGIES INCCORPORATE HEADQUARTERS |
| P420634 | 06KW9 | LUCENT TECHNOLOGIES INCDBA FEDERAL MARKETING GROUP |
| 2003-6 | 33066 | NEWTON INSTRUMENT CO INC |
| 0020030630 | 33066 | NEWTON INSTRUMENT CO INC |
Technical Data | NSN 5975-00-295-9864
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LADDER TYPE STRAIGHT SECTION |
| OVERALL LENGTH | 116.500 INCHES NOMINAL |
| OVERALL WIDTH | 12.000 INCHES NOMINAL |
| CROSS-MEMBER SPACING | 9.000 INCHES NOMINAL |
| STRINGER THICKNESS | 0.375 INCHES NOMINAL |
| STRINGER WIDTH | 1.500 INCHES NOMINAL |
| CLEARANCE WIDTH | 11.250 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | ENAMEL |
