NSN 5975-00-433-2072
Part Details | ELECTRICAL EQUIPMENT SHELF
5975-00-433-2072 An item relatively thin in its vertical dimension, designed to provide a horizontal working surface on the front of a CABINET, ELECTRICAL EQUIPMENT or a RACK, ELECTRICAL EQUIPMENT. May include wiring, power outlets and similar accessories. May be furnished with slides to permit stowing within the cabinet or rack when not in actual use.
Alternate Parts: SA1720GT, SA1720G, 5975-00-433-2072, 00-433-2072, 5975004332072, 004332072
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 14, 1972 | 00-433-2072 | 20774 ( SHELF, ELECTRICAL EQUIPMENT ) |
REFERENCE DRAWINGS & PICTURES

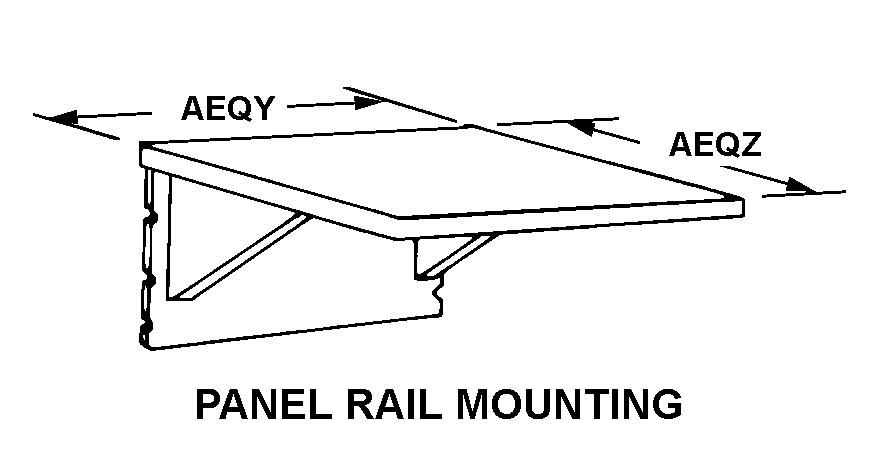

PANEL RAIL MOUNTING
Cross Reference | NSN 5975-00-433-2072
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SA1720GT | 71218 | BUD INDUSTRIES, INC. |
| SA1720G | 71218 | BUD INDUSTRIES, INC. |
Technical Data | NSN 5975-00-433-2072
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PANEL RAIL MOUNTING |
| SHELF WIDTH | 22.000 INCHES NOMINAL |
| SHELF DEPTH | 20.000 INCHES NOMINAL |
| MATERIAL | STEEL |
| COLOR | GRAY, HAMMERTONE |
| MOUNTING PROVISION | BRACKET AND SLIDE AND UNTHREADED HOLE |
| SHELF TOP MATERIAL | STEEL |
| SPECIAL FEATURES | TEXTURED FINISH |
