NSN 5975-00-518-1733

Part Details | ELECTRICAL BOX CONNECTOR

5975-00-518-1733 An item designed to mechanically connect in a straight line or an angle electrical conduit, conduit assemblies, wire, wireway, cable, or cable assemblies to a point of termination, such as a junction box, conduit outlet, or the like. The termination end must have an external thread with a boss or shoulder and may be furnished with a locknut or bondnut; or, must have internal thread with which is furnished an externally threaded hub with a wrenching feature; or be of a snap-in type that may be installed from either inside or outside the box and secured with a captive screw. It is not intended to join conduit to conduit. For angle type items having a male thread without a boss or shoulder, see ELBOW, ELECTRICAL CONDUIT. Does not include facilities to mount wiring devices. Excludes CHASE NIPPLE, CONDUIT.

Alternate Parts: AA5055200I1AASZ0.500, AA50552-00I-1-A-A-SZ0.500, AA50552, WF406, 5975-00-518-1733, 00-518-1733, 5975005181733, 005181733

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196300-518-173309663 ( BOX CONNECTOR, ELECTRICAL )
REFERENCE DRAWINGS & PICTURES

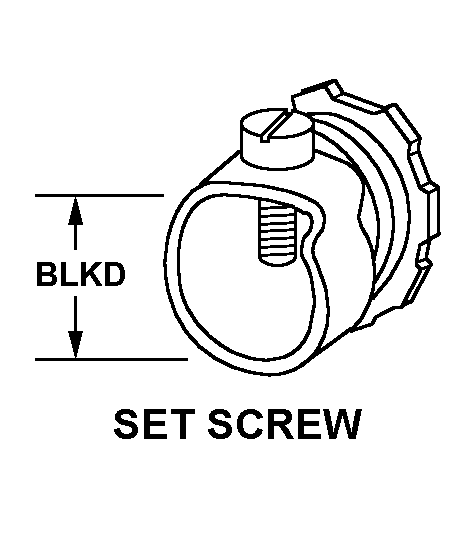

SET SCREW

Cross Reference | NSN 5975-00-518-1733
Part Number Cage Code Manufacturer
AA50552-00I-1-A-A-SZ0.50058536FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES
AA5055258536FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES
WF40681348FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES
Technical Data | NSN 5975-00-518-1733
Characteristic Specifications
STYLE DESIGNATOR SET SCREW
MATERIAL IRON MALLEABLE
SURFACE TREATMENT ZINC
FURNISHED ITEMS LOCKNUT AND SETSCREW
NONDEFINITIVE SPEC/STD DATA1 TYPE AND A STYLE AND 1 CLASS
