NSN 5975-00-583-6074
Part Details | ELECTRICAL CONDUIT BEND
5975-00-583-6074 An item fabricated in the form of a curved section specifically designed to mechanically join a conduit or conduit fitting to another conduit or conduit fitting. Items of this type do not have a boss or hub at either end, nor do they have facilities for mounting wiring devices or pulling electrical conductors. See also ELBOW, ELECTRICAL CONDUIT and CONDUIT OUTLET.
Alternate Parts: WWC581, 5975-00-583-6074, 00-583-6074, 5975005836074, 005836074
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-583-6074 | 06998 ( BEND, ELECTRICAL CONDUIT ) |
REFERENCE DRAWINGS & PICTURES

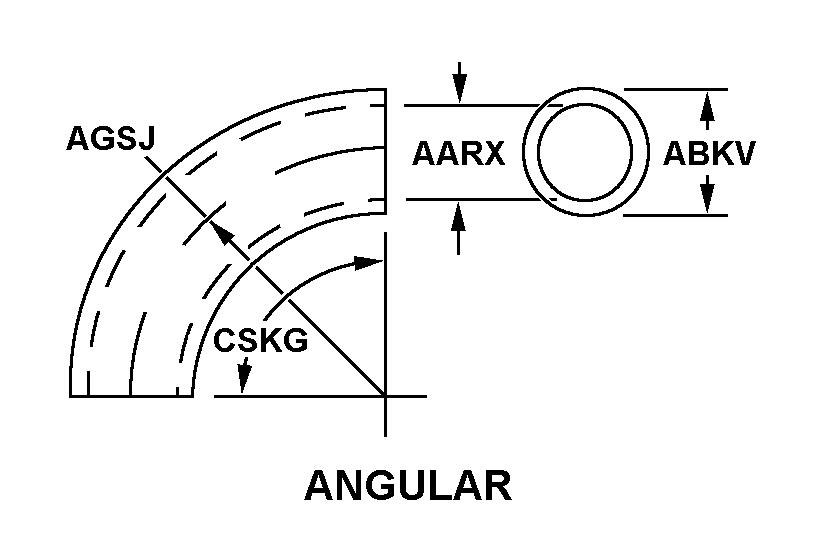

ANGULAR
Cross Reference | NSN 5975-00-583-6074
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WWC581 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5975-00-583-6074
| Characteristic | Specifications |
|---|---|
| TRADE SIZE | 2.000 |
| STYLE DESIGNATOR | ANGULAR |
| NONDEFINITIVE SPEC/STD DATA | 2 SIZE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY THE SURFACE TREATMENT |
