NSN 5975-00-616-8907
Part Details | STUFFING TUBE
5975-00-616-8907 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Alternate Parts: 6168907, 5975-00-616-8907, 00-616-8907, 5975006168907, 006168907
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-616-8907 | 00882 ( STUFFING TUBE ) |

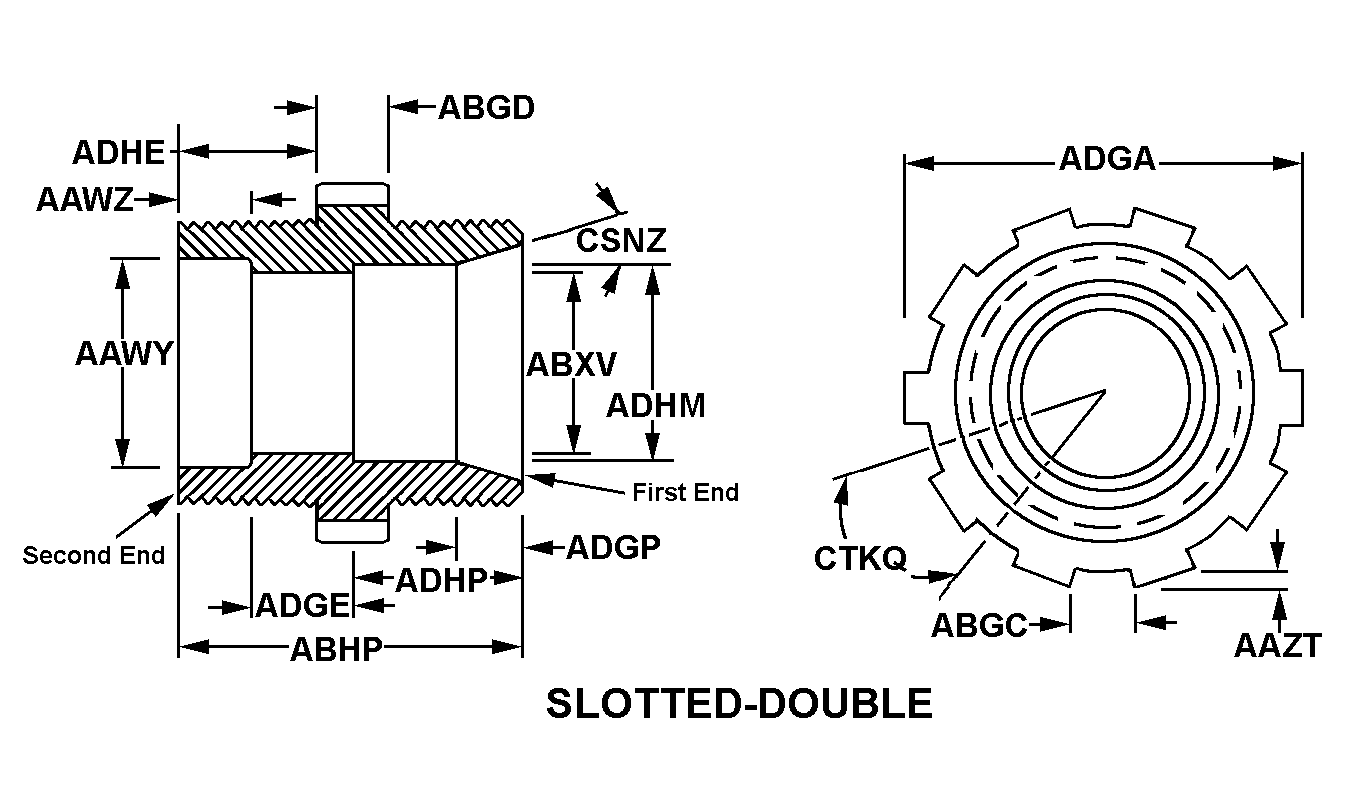

REFERENCE DRAWINGS & PICTURES
SLOTTED-DOUBLE
Cross Reference | NSN 5975-00-616-8907
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6168907 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
Technical Data | NSN 5975-00-616-8907
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SLOTTED-DOUBLE |
| INSIDE DIAMETER | 4.250 INCHES MINIMUM AND 4.260 INCHES MAXIMUM |
| OVERALL LENGTH | 3.350 INCHES MINIMUM AND 3.360 INCHES MAXIMUM |
| BORE DIAMETER | 1.417 INCHES MINIMUM AND 1.427 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 4.700 INCHES MINIMUM AND 4.710 INCHES MAXIMUM |
| BORE LENGTH | 0.310 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |
| FIRST PACKING CHAMBER LENGTH | 2.830 INCHES MINIMUM AND 2.850 INCHES MAXIMUM |
