NSN 5975-00-644-3091
Part Details | CORD ASSEMBLY FASTENER
5975-00-644-3091 A fastener primarily designed to hold and secure a cord assembly so that pulling of the cord will not put a strain on the terminal connections.
Alternate Parts: 112, 5975-00-644-3091, 00-644-3091, 5975006443091, 006443091
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-644-3091 | 01051 ( FASTENER, CORD ASSEMBLY ) |
REFERENCE DRAWINGS & PICTURES

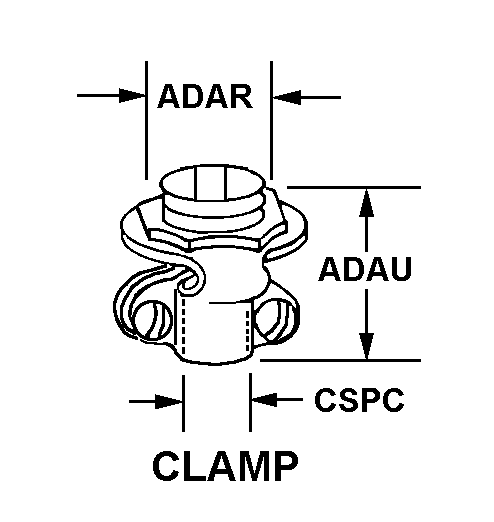

CLAMP
Cross Reference | NSN 5975-00-644-3091
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 112 | 74545 | HUBBELL INCWIRING DEVICE DIV |
Technical Data | NSN 5975-00-644-3091
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLAMP |
| BODY OUTSIDE DIAMETER | 0.531 INCHES NOMINAL |
| BODY HEIGHT | 1.250 INCHES NOMINAL |
| ACCOMMODATION HOLE INSIDE DIAMETER | 0.500 INCHES NOMINAL |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT-NEMA TYPE 4 |
| MOUNTING METHOD | INTEGRAL THREADED NUT |
| MOUNTING DEVICE QUANTITY | 1 |
