NSN 5975-00-651-3919
Part Details | ELECTRICAL CONDUIT BEND
5975-00-651-3919 An item fabricated in the form of a curved section specifically designed to mechanically join a conduit or conduit fitting to another conduit or conduit fitting. Items of this type do not have a boss or hub at either end, nor do they have facilities for mounting wiring devices or pulling electrical conductors. See also ELBOW, ELECTRICAL CONDUIT and CONDUIT OUTLET.
Alternate Parts: 525626, 5975-00-651-3919, 00-651-3919, 5975006513919, 006513919
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-651-3919 | 06998 ( BEND, ELECTRICAL CONDUIT ) |

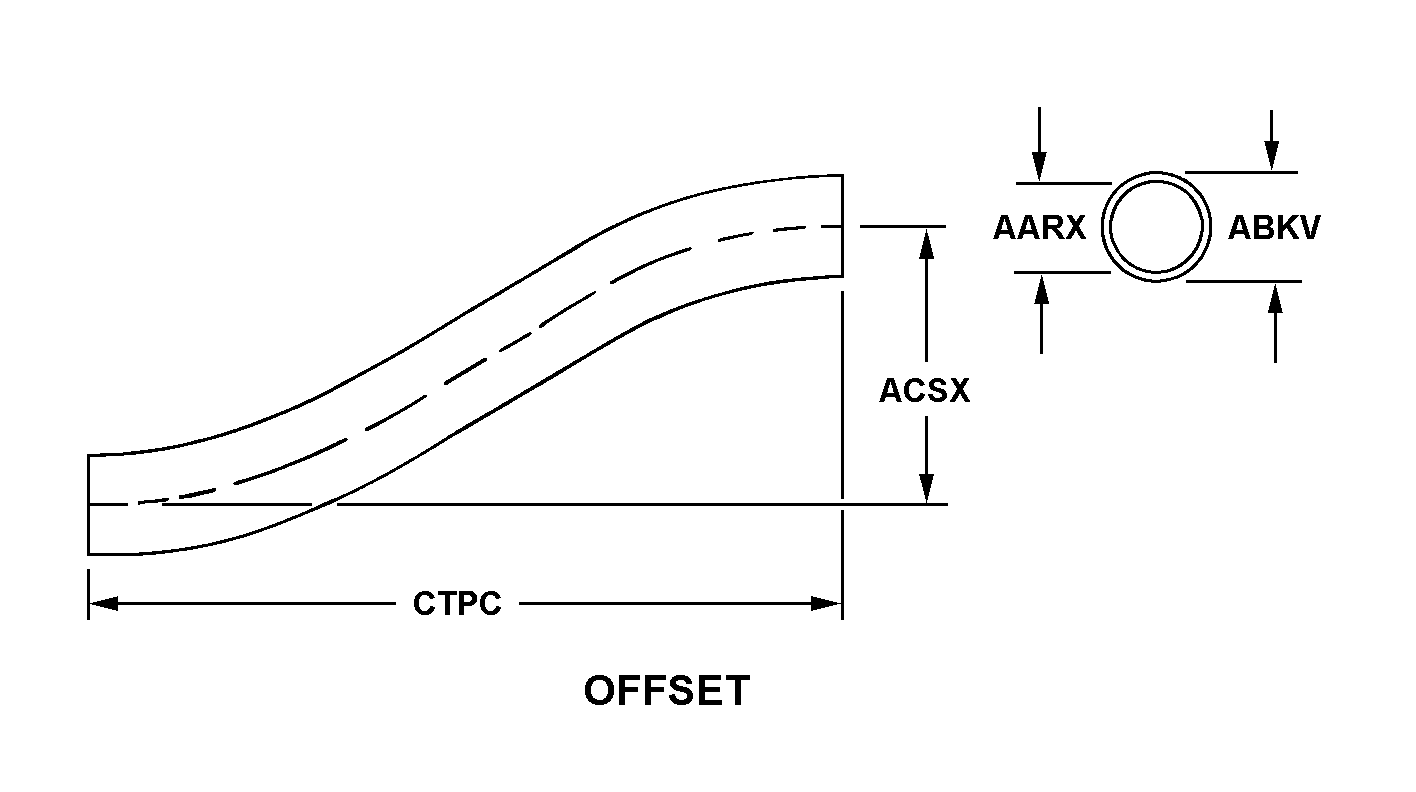

REFERENCE DRAWINGS & PICTURES
OFFSET
Cross Reference | NSN 5975-00-651-3919
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 525626 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
Technical Data | NSN 5975-00-651-3919
| Characteristic | Specifications |
|---|---|
| STRUCTURAL DESIGN | THICKWALL |
| STYLE DESIGNATOR | OFFSET |
| INSIDE DIAMETER | 0.158 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.188 INCHES NOMINAL |
| OFFSET DISTANCE | 2.120 INCHES NOMINAL |
| OFFSET BEND DISTANCE | 6.320 INCHES NOMINAL |
