NSN 5975-00-685-9538
Part Details | BLANK PANEL
5975-00-685-9538 A panel designed to fill a space not occupied by actual operating components, and may have instructions, component designations, or component identifications etched or printed thereon.
Alternate Parts: PA3102HG, RE23D225 SIZE B, 5975-00-685-9538, 00-685-9538, 5975006859538, 006859538
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-685-9538 | 15195 ( PANEL, BLANK ) |
REFERENCE DRAWINGS & PICTURES

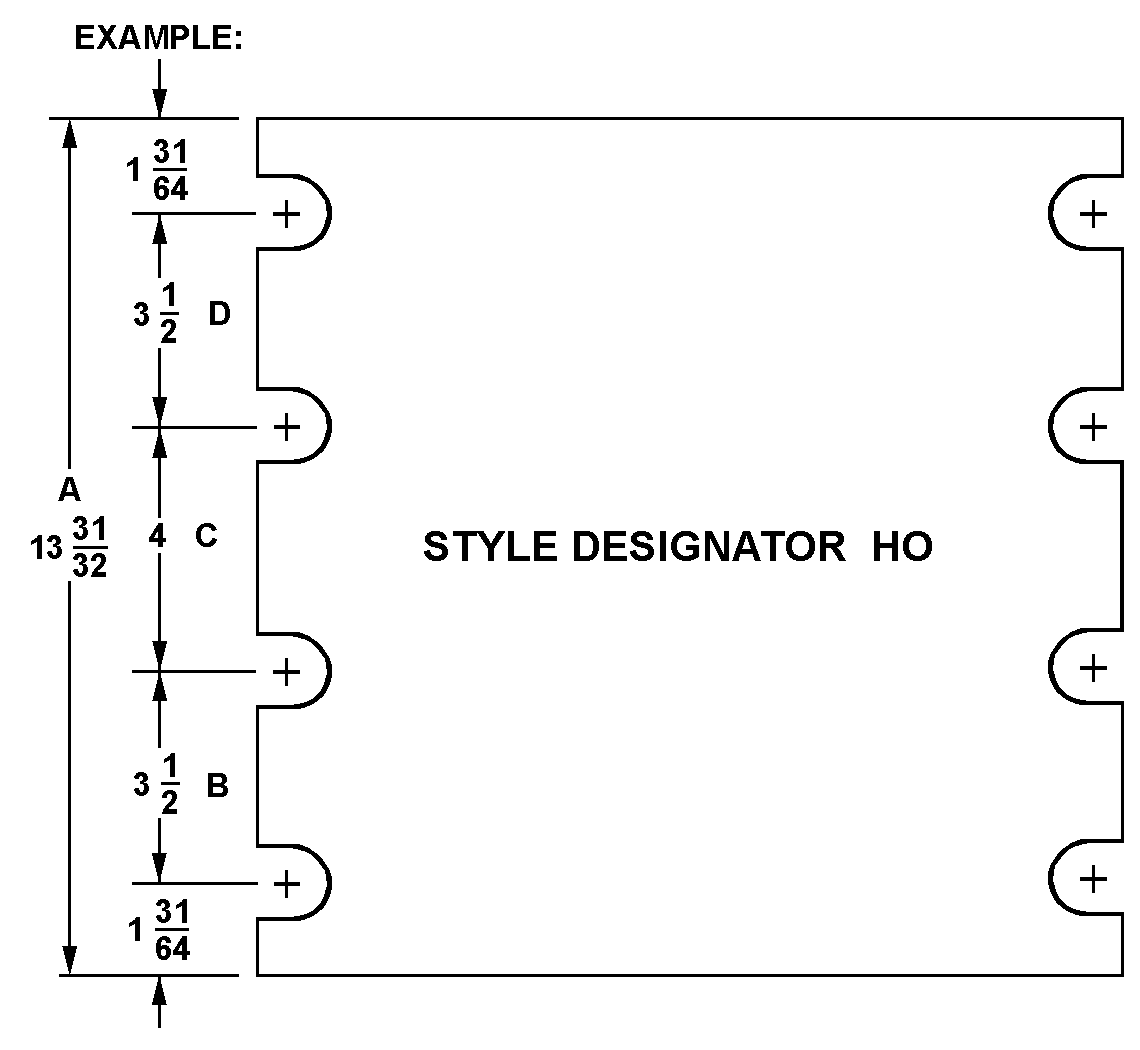

OPEN SLOT
BLANK, PLAIN DESIGN
Cross Reference | NSN 5975-00-685-9538
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PA3102HG | 71218 | BUD INDUSTRIES, INC. |
| RE23D225 SIZE B | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5975-00-685-9538
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BLANK, PLAIN DESIGN |
| OVERALL HEIGHT | 3.469 INCHES NOMINAL |
| OVERALL WIDTH | 19.000 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.188 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 3003 |
| SURFACE TREATMENT | ENAMEL |
| COLOR | GRAY, HAMMERTONE |
| STANDARD MOUNTING PATTERN DESIGNATOR | OPEN SLOT |
| SPECIAL FEATURES | TEMPER H14 |
