NSN 5975-00-685-9546
Part Details | BLANK PANEL
5975-00-685-9546 A panel designed to fill a space not occupied by actual operating components, and may have instructions, component designations, or component identifications etched or printed thereon.
Alternate Parts: H6602, PS1252MG, PS1252LG, PS1252HG, DL845120, DL84-5120, RI013033, RI-013-033, 9002220 SIZE C, 9002-220 SIZE C, SP212HG, 5975-00-685-9546, 00-685-9546, 5975006859546, 006859546
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-685-9546 | 15195 ( PANEL, BLANK ) |

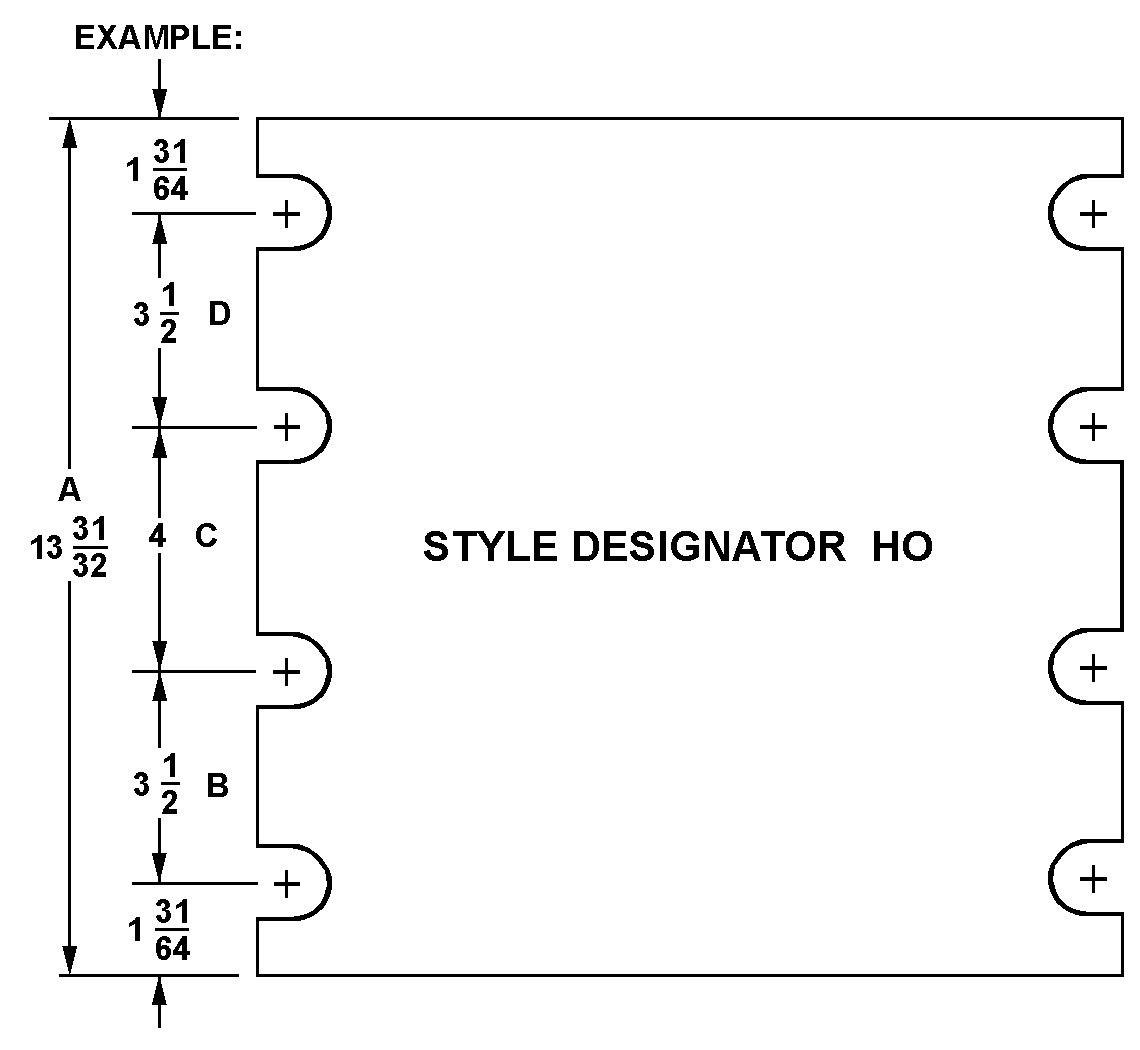

REFERENCE DRAWINGS & PICTURES
OPEN SLOT
BLANK, PLAIN DESIGN
Cross Reference | NSN 5975-00-685-9546
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H6602 | 74156 | ANGO ELECTRONICS CORPORATIONDBA PAR METAL PRODUCTS |
| PS1252MG | 71218 | BUD INDUSTRIES, INC. |
| PS1252LG | 71218 | BUD INDUSTRIES, INC. |
| PS1252HG | 71218 | BUD INDUSTRIES, INC. |
| DL84-5120 | 56772 | DA LO INDUSTRIES INCDIV DA LO INDUSTRIES DIVISION OF |
| RI-013-033 | 63564 | RHYTHM INDUSTRIES INC |
| 9002-220 SIZE C | 62989 | XY RESOURCES INCDBA TELECOM INSTALLATION DIV |
| SP212HG | 06514 | ZERO STANTRON |
Technical Data | NSN 5975-00-685-9546
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BLANK, PLAIN DESIGN |
| OVERALL HEIGHT | 5.250 INCHES NOMINAL |
| OVERALL WIDTH | 19.000 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.125 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | ENAMEL |
| STANDARD MOUNTING PATTERN DESIGNATOR | OPEN SLOT |
| STORAGE FACILITY | AB PREFERRED DOCK LEVEL UNHEATED WAREHOUSE AND AB ALTERNATE GENERAL PURPOSE UNHEATED WAREHOUSE |
